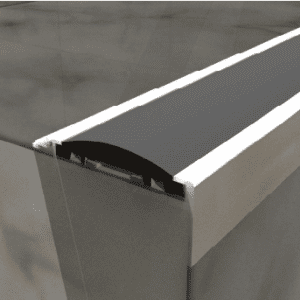

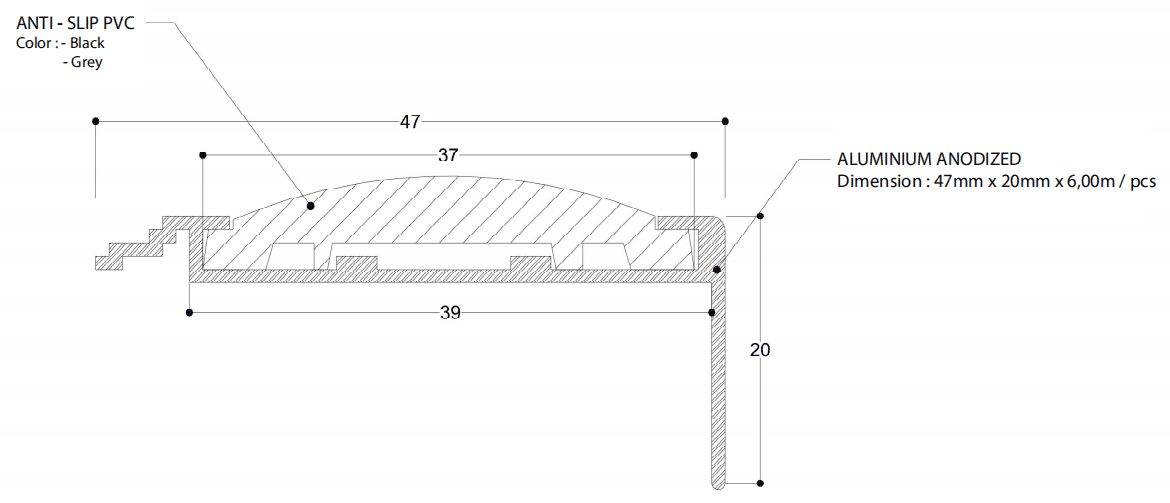

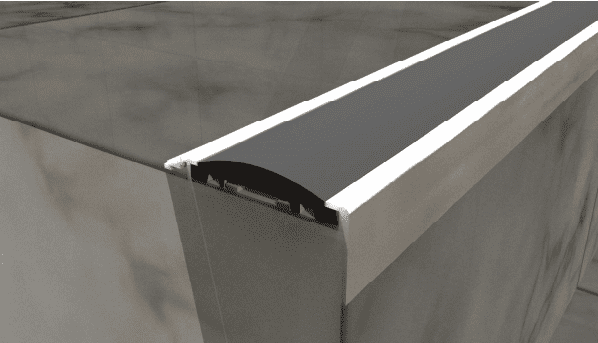

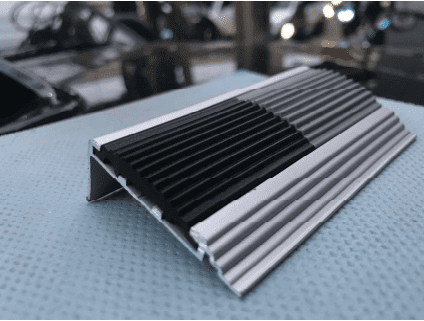

Aluminum stair nosing + rubber anti-slip suitable for installation on stairs (indoor)
Stair nosing benefits: prevents slipping when going up / down stairs
Material: aluminum – durable, does not crack / break, does not rust, does not brittle and is sturdy
How to Install: In the screw to the floor so that it is not easy to come off compared to plastic / pvc which is only glued
Suitable for use at the end of public stairs, residential houses, apartments, hospitals, offices, factories, warehouses, shopping malls, places of worship, etc.
HPL/VINYL TYPE Cementitious Infill Steel Access Floor System
- Designed specially for computer room & clean room
- Light weight cementitious fill makes panels solid and quiet
- Completely non-combustible
- Black electrodeposition cathodic epoxy paint finish for life time protection
- Class A flame spread and smoke development rating
- Wide range of finishes available
RIGID GRID SYSTEM (24x24x1.25” and 600x600x32mm)
- Designed specially for computer room & clean room
- PVC taped stringer provide excellent Air Leakage Rate
- Excellent seismic proof performance
- Maximum Finished Floor Height:1200 mm
DESIGNER HPL/VINYL LAMINATES
- Designer laminates are available in many different finishes
TOP SET TRIM OR TRIMLESS PANELS
- Top set trim provides a protective edge
- Trimless panels also available
CONDUCTIVE & ANTISTATIC/DISSIPATIVE HPL/VINYL TILE
- Available in many colors
- Conductive:2.5×10^4 ~ 1.0×10^6 ohms
- Antistatic/Dissipative:1.0×10^6 ~ 1.0×10^10 ohms
PERFORATED PANEL (24x24x1.25” and 600x600x32mm)
- Provide optimum laminar airflow, without turbulence
- Up to 20% airflow rate
- Damper optional
PERFORMANCE SELECTION CHART
| Jindao HS800H/HS1000H/HS1250H HPL Finished Hollow Steel Access Floor Panel With Edge Trim | |||||||
| Panel Type | Panel Grade | Dynamic Load (kN) | Concentrated Load (kN) | Impact Load (kG) | Safety Factor | Uniform Load (kN/m2) | Weight (kG) |
| HS800H | Medium | 3 | 3.6 | 50 | 3 | 12 | 8 |
| HS1000H | Heavy | 4.5 | 4.5 | 50 | 3 | 20 | 10 |
| HS1250H | Extra Heavy | 5.5 | 5.5 | 50 | 3 | 30 | 12 |
| Jindao HS800HN/HS1000HN/HS1250HN HPL Finished Hollow Steel Access Floor Panel Without Edge Trim | |||||||
| Panel Type | Panel Grade | Dynamic Load (kN) | Concentrated Load (kN) | Impact Load (kG) | Safety Factor | Uniform Load (kN/m2) | Weight (kG) |
| HS800HN | Medium | 3 | 3.6 | 50 | 3 | 12 | 8 |
| HS1000HN | Heavy | 4.5 | 4.5 | 50 | 3 | 20 | 10 |
| HS1250HN | Extra Heavy | 5.5 | 5.5 | 50 | 3 | 30 | 12 |
| Jindao HS800V/HS1000V/HS1250V Vinyl Finished Hollow Steel Access Floor Panel With Edge Trim | |||||||
| Panel Type | Panel Grade | Dynamic Load (kN) | Concentrated Load (kN) | Impact Load (kG) | Safety Factor | Uniform Load (kN/m2) | Weight (kG) |
| HS800V | Medium | 3 | 3.6 | 50 | 3 | 12 | 8 |
| HS1000V | Heavy | 4.5 | 4.5 | 50 | 3 | 20 | 10 |
| HS1250V | Extra Heavy | 5.5 | 5.5 | 50 | 3 | 30 | 12 |
| Jindao HS800VN/HS1000VN/HS1250VN Vinyl Finished Hollow Steel Access Floor Panel Without Edge Trim | |||||||
| Panel Type | Panel Grade | Dynamic Load (kN) | Concentrated Load (kN) | Impact Load (kG) | Safety Factor | Uniform Load (kN/m2) | Weight (kG) |
| HS800VN | Medium | 3 | 3.6 | 50 | 3 | 12 | 8 |
| HS1000VN | Heavy | 4.5 | 4.5 | 50 | 3 | 20 | 10 |
| HS1250VN | Extra Heavy | 5.5 | 5.5 | 50 | 3 | 30 | 12 |
| Jindao Rigid Grid System for HPL/Vinyl Finished Hollow Steel Access Floor System--- Pedestal/Stringer | ||||||
| Pedestal No. | Pedestal Height (mm) | Horizontal Load (kG) | Vertical Load (18 kN) | Pedestal Head | Pedestal Tube | Pedestal Base |
| FS-L-PST80 | 80 ± 20 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST100 | 100 ± 20 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST150 | 150 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST200 | 200 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST250 | 250 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST300 | 300 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST350 | 350 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST400 | 400 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST450 | 450 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST500 | 500 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST550 | 550 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST600 | 600 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST650 | 650 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST700 | 700 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST750 | 750 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST800 | 800 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST850 | 850 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST900 | 900 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST950 | 950 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1000 | 1000 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1050 | 1050 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1100 | 1100 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1150 | 1150 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1200 | 1200 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
