24'' and 600mm HPL/Vinyl HS Series

HPL/VINYL TYPE Cementitious Infill Steel Access Floor System

Designed specially for computer room & clean room
Light weight cementitious fill makes panels solid and quiet
Completely non-combustible
Black electrodeposition cathodic epoxy paint finish for life time protection
Class A flame spread and smoke development rating
Wide range of finishes available

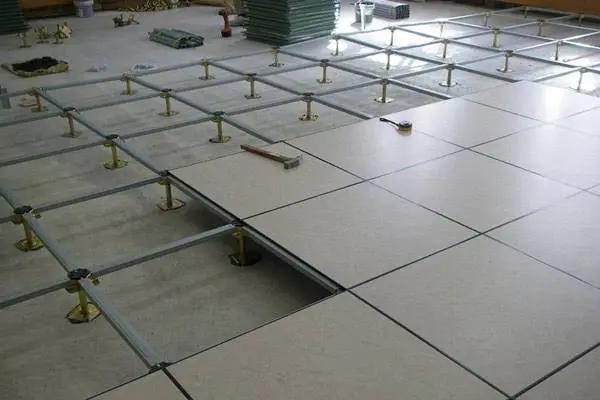

RIGID GRID SYSTEM (24x24x1.25” and 600x600x32mm)

Designed specially for computer room & clean room
PVC taped stringer provide excellent Air Leakage Rate
Excellent seismic proof performance
Maximum Finished Floor Height:1200 mm

DESIGNER HPL/VINYL LAMINATES

Designer laminates are available in many different finishes

TOP SET TRIM OR TRIMLESS PANELS

Top set trim provides a protective edge
Trimless panels also available

CONDUCTIVE & ANTISTATIC/DISSIPATIVE HPL/VINYL TILE

Available in many colors
Conductive:2.5×10^4 ~ 1.0×10^6 ohms
Antistatic/Dissipative:1.0×10^6 ~ 1.0×10^10 ohms

PERFORATED PANEL (24x24x1.25” and 600x600x32mm)

Provide optimum laminar airflow, without turbulence
Up to 20% airflow rate
Damper optional

PERFORMANCE SELECTION CHART

Jindao HS800H/HS1000H/HS1250H HPL Finished Hollow Steel Access Floor Panel With Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800H	Medium	3	3.6	50	3	12	8
HS1000H	Heavy	4.5	4.5	50	3	20	10
HS1250H	Extra Heavy	5.5	5.5	50	3	30	12

Jindao HS800HN/HS1000HN/HS1250HN HPL Finished Hollow Steel Access Floor Panel Without Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800HN	Medium	3	3.6	50	3	12	8
HS1000HN	Heavy	4.5	4.5	50	3	20	10
HS1250HN	Extra Heavy	5.5	5.5	50	3	30	12

Jindao HS800V/HS1000V/HS1250V Vinyl Finished Hollow Steel Access Floor Panel With Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800V	Medium	3	3.6	50	3	12	8
HS1000V	Heavy	4.5	4.5	50	3	20	10
HS1250V	Extra Heavy	5.5	5.5	50	3	30	12

Jindao HS800VN/HS1000VN/HS1250VN Vinyl Finished Hollow Steel Access Floor Panel Without Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800VN	Medium	3	3.6	50	3	12	8
HS1000VN	Heavy	4.5	4.5	50	3	20	10
HS1250VN	Extra Heavy	5.5	5.5	50	3	30	12

Jindao Rigid Grid System for HPL/Vinyl Finished Hollow Steel Access Floor System--- Pedestal/Stringer
Pedestal No.	Pedestal Height (mm)	Horizontal Load (kG)	Vertical Load (18 kN)	Pedestal Head	Pedestal Tube	Pedestal Base
FS-L-PST80	80 ± 20	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST100	100 ± 20	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST150	150 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST200	200 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST250	250 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST300	300 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST350	350 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST400	400 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST450	450 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST500	500 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST550	550 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST600	600 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST650	650 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST700	700 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST750	750 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST800	800 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST850	850 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST900	900 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST950	950 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1000	1000 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1050	1050 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1100	1100 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1150	1150 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1200	1200 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick

24'' and 600mm Bare HS Series

BARE TYPE Hollow Steel Access Floor System

Designed specially for office building
Light weight, green building materials
Completely non-combustible
Black electrodeposition cathodic epoxy paint finish for life time protection
Class A flame spread and smoke development rating
All-steel pedestals provide excellent impact load performance

CORNER LOCK SYSTEM (24x24x1.25” and 600x600x32mm)

Designed specially for office building
Engineered positive engagement between panel and pedestal
Easy and quick accessibility
Excellent seismic proof performance
Maximum Finished Floor Height:800 mm

BOLTED STRINGER SYSTEM (24x24x1.25” and 600x600x32mm)

Designed specially for Underfloor Air Distribution office building
Trapeziform PVC taped stringer provide excellent Air Leakage Rate
Excellent seismic proof performance
Improved static load performance
Maximum Finished Floor Height:1200 mm

PERFORMANCE SELECTION CHART

Jindao HS800B/HS1000B/HS1250B Bare Finished Hollow Steel Access Floor Panel
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800B	Medium	3	3.6	50	3	12	8
HS1000B	Heavy	4.5	4.5	50	3	20	10
HS1250B	Extra Heavy	5.5	5.5	50	3	30	12

Jindao Corner Lock System for Bare Finished Hollow Steel Access Floor System --- Pedestal
Pedestal No.	Pedestal Height (mm)	Horizontal Load (kG)	Vertical Load (18 kN)	Pedestal Head	Pedestal Tube	Pedestal Base
FS-B-PST80	80 ± 20	50	Did not collapse	□85mm cruciform	Ф 20mm × 2mm thick	□100mm × 2.5mm thick
FS-B-PST100	100 ± 20	50	Did not collapse	□85mm cruciform	Ф 20mm × 2mm thick	□100mm × 2.5mm thick
FS-B-PST150	150 ± 25	50	Did not collapse	□85mm cruciform	Ф 20mm × 2mm thick	□100mm × 2.5mm thick
FS-B-PST200	200 ± 25	50	Did not collapse	□85mm cruciform	Ф 20mm × 2mm thick	□100mm × 2.5mm thick
FS-B-PST250	250 ± 25	50	Did not collapse	□85mm cruciform	Ф 20mm × 2mm thick	□100mm × 2.5mm thick
FS-B-PST300	300 ± 25	50	Did not collapse	□85mm cruciform	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-B-PST350	350 ± 25	50	Did not collapse	□85mm cruciform	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-B-PST400	400 ± 25	50	Did not collapse	□85mm cruciform	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-B-PST450	450 ± 25	50	Did not collapse	□85mm cruciform	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-B-PST500	500 ± 25	50	Did not collapse	□85mm cruciform	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-B-PST550	550 ± 25	50	Did not collapse	□85mm cruciform	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-B-PST600	600 ± 25	50	Did not collapse	□85mm cruciform	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-B-PST650	650 ± 25	50	Did not collapse	□85mm cruciform	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-B-PST700	700 ± 25	50	Did not collapse	□85mm cruciform	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-B-PST750	750 ± 25	50	Did not collapse	□85mm cruciform	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-B-PST800	800 ± 25	50	Did not collapse	□85mm cruciform	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick

Jindao Bolted Stringer System for Bare Finished Hollow Steel Access Floor System --- Pedestal/Stringer
Pedestal No.	Pedestal Height (mm)	Horizontal Load (kG)	Vertical Load (18 kN)	Pedestal Head	Pedestal Tube	Pedestal Base
FS-L-PST80	80 ± 20	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST100	100 ± 20	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST150	150 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST200	200 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST250	250 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST300	300 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST350	350 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST400	400 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST450	450 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST500	500 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST550	550 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST600	600 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST650	650 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST700	700 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST750	750 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST800	800 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST850	850 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST900	900 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST950	950 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1000	1000 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1050	1050 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1100	1100 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1150	1150 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1200	1200 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick

600mm Fibrecore Series

Fibrecore Raised Floor System

The modular square fibrecore panel consists of following parts:

30mm thick incombustible & waterproof fibrecore (fibre cement board) panel
Fibrecore panel is encapsulated by 2 pieces of steelplates on top and bottom
4 pieces of black PVC strips along the side of the panel
Covering: Steelplate, HPL, Vinyl, Rubber, Linoleum, Carpet, Ceramic Tile

RIGID GRID SYSTEM (600 x 600 mm)

Designed for computer room & office building
Excellent acoustics performance
Maximum Finished Floor Height:900 mm

ERAMIC TILE FIBRECORE PANEL

Specially designed for waterproof office hall
Surfaces are available in “matte”, “semi-matte”, “bright” or “polished”

PERFORATED PANEL (600 x 600 mm)

Provide optimum laminar airflow, without turbulence
Up to 10% airflow rate

PERFORMANCE SELECTION CHART

Jindao Fibrecore Raised Floor Panel
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Construction
WP1000V	Heavy	4.5	5.5	50	3	20	vinyl/fibrecore/steel
WP1000H	Heavy	4.5	5.5	50	3	20	hpl/fibrecore/steel
WP1000B	Heavy	4.5	5.5	50	3	20	steel/fibrecore/steel

Jindao Rigid Grid System for Fibrecore Raised Floor System --- Pedestal/Stringer
Pedestal No.	Finished Floor Height (mm)	Horizontal Load (kG)	Vertical Load (18 kN)	Pedestal Head	Pedestal Tube	Pedestal Base
WP-PST80	80 ± 7	50	Did not collapse	Ф95 mm × 3 mm flat	N/A	□100mm × 2.5mm thick
WP-PST90	90 ± 7	50	Did not collapse	Ф95 mm × 3 mm flat	N/A	□100mm × 2.5mm thick
WP-PST100	100 ± 12	50	Did not collapse	Ф95 mm × 3 mm flat	N/A	□100mm × 2.5mm thick
WP-PST125	125 ± 15	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST150	150 ± 20	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST200	200 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST250	250 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST300	300 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST350	350 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST400	400 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST450	450 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST500	500 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST550	550 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST600	600 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST650	650 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST700	700 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST750	750 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST800	800 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST850	850 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST900	900 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick

600 x 600 mm Woodcore Raised Floor

Woodcore Raised Floor System

The modular square woodcore panel consists of following parts:

38mm thickness particle board panel
Particle board panel is encapsulated by 2 pieces of steelplates on top and bottom
4 pieces of black PVC strips along the side of the panel
Covering: Steelplate, HPL, Vinyl, Rubber, Linoleum, Carpe

RIGID GRID SYSTEM (600 x 600 mm)

Designed for computer room & office building
Excellent acoustics performance
Maximum Finished Floor Height:900 mm

DESIGNER HPL/VINYL LAMINATES

Designer laminates are available in many different finishes

CONDUCTIVE & ANTISTATIC/DISSIPATIVE HPL/VINYL TILE

Available in many colors
Conductive:2.5×10^4 ~ 1.0×10^6 ohms
Antistatic/Dissipative:1.0×10^6 ~ 1.0×10^10 ohms

PERFORATED PANEL (600 x 600 mm)

Provide optimum laminar airflow, without turbulence
Up to 10% airflow rate

PERFORMANCE SELECTION CHART

Jindao Woodcore Raised Floor Panel
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Construction
WP1000V	Heavy	4.5	5.5	50	3	20	vinyl/chipboard/steel
WP1000H	Heavy	4.5	5.5	50	3	20	hpl/chipboard/steel
WP1000B	Heavy	4.5	5.5	50	3	20	steel/chipboard/steel

Jindao Rigid Grid System for Woodcore Raised Floor System --- Pedestal/Stringer
Pedestal No.	Finished Floor Height (mm)	Horizontal Load (kG)	Vertical Load (18 kN)	Pedestal Head	Pedestal Tube	Pedestal Base
WP-PST80	80 ± 7	50	Did not collapse	Ф95 mm × 3 mm flat	N/A	□100mm × 2.5mm thick
WP-PST90	90 ± 7	50	Did not collapse	Ф95 mm × 3 mm flat	N/A	□100mm × 2.5mm thick
WP-PST100	100 ± 12	50	Did not collapse	Ф95 mm × 3 mm flat	N/A	□100mm × 2.5mm thick
WP-PST125	125 ± 15	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST150	150 ± 20	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST200	200 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST250	250 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST300	300 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST350	350 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST400	400 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST450	450 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST500	500 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST550	550 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST600	600 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST650	650 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST700	700 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST750	750 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST800	800 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST850	850 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick
WP-PST900	900 ± 25	50	Did not collapse	Ф95 mm × 3 mm flat	Ф25mm × 2.5mm thick	□100mm × 2.5mm thick

500mm OA Floor System

500mm BARE TYPE Cementitious Infill Steel OA Floor System

Designed specially for office building
Excellent rolling load & ultimate load performance
Light weight cementitious fill makes panels solid and quiet
Completely noncombustible
Black electrodeposition cathodic epoxy paint finish for life time protection
Class A flame spread and smoke development rating
All-steel pedestals provide excellent impact load performance

SOLID OA FLOOR PANEL(500 x 500 x 28 mm)

Designed specially for office building
Engineered positive engagement between panel and pedestal
Easy and quick accessibility
Excellent seismic proof performance
Maximum Finished Floor Height:800 mm

DUAL CUTOUT OA FLOOR PANEL(500 x 500 x 28 mm)

Designed specially for office building
Engineered positive engagement between panel and pedestal
Easy and quick accessibility
Excellent seismic proof performance
Maximum Finished Floor Height:800 mm

CORNER LOCK PEDESTAL FOR OA FLOOR (70~ 500 mm)

Standard FFH: 70~200 mm
FFH higher than 200 mm is also available

PERFORMANCE SELECTION CHART

Jindao 500mm OA800A/0A800C/OA1000A/OA1000C Bare Finished OA Floor Panel
Panel Type	Description	Concentrated Load/Deflection (kN/mm)	Ultimate Load (kN)	Standard FFH	Weight (kG/m2)
OA800A	300kG Solid OA Floor Panel	Center of the panel: 5000/2.0 Center of the edge: 5000/2.5	Center of the panel: 15000 Center of the edge: 12000	70~200 mm	36
OA800C	300kG Dual Cutout OA Floor Panel	Center of the panel: 4500/2.0 Center of the edge: 4500/2.5	Center of the panel: 12000 Center of the edge: 10000	70~200 mm	36
OA1000A	500kG Solid OA Floor Panel	Center of the panel: 6000/2.0 Center of the edge: 6000/2.5	Center of the panel: 18000 Center of the edge: 14000	70~200 mm	39.6
OA1000C	500kG Dual Cutout OA Floor Panel	Center of the panel: 5500/2.0 Center of the edge: 5500/2.5	Center of the panel: 15000 Center of the edge: 12000	70~200 mm	39.6

Jindao Corner Lock Pedestal for OA Floor
Pedestal No.	Pedestal Height (mm)	Horizontal Load (kG)	Vertical Load (18 kN)	Pedestal Head	Pedestal Thread Rod	Pedestal Base
OA-PST80	80 ± 20	50	Did not collapse	Ф80mm cruciform	Ф 16mm thick	□90mm × 3mm thick
OA-PST100	100 ± 20	50	Did not collapse	Ф80mm cruciform	Ф 16mm thick	□90mm × 3mm thick
OA-PST150	150 ± 25	50	Did not collapse	Ф80mm cruciform	Ф 16mm thick	□90mm × 3mm thick
OA-PST200	200 ± 25	50	Did not collapse	Ф80mm cruciform	Ф 16mm thick	□90mm × 3mm thick
OA-PST250	250 ± 25	50	Did not collapse	Ф80mm cruciform	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
OA-PST300	300 ± 25	50	Did not collapse	Ф80mm cruciform	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
OA-PST350	350 ± 25	50	Did not collapse	Ф80mm cruciform	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
OA-PST400	400 ± 25	50	Did not collapse	Ф80mm cruciform	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
OA-PST450	450 ± 25	50	Did not collapse	Ф80mm cruciform	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
OA-PST500	500 ± 25	50	Did not collapse	Ф80mm cruciform	Ф 24mm × 2mm thick	□100mm × 2.5mm thick

24” and 600mm HPL/Vinyl Finished Cementitious Infill Steel Access Floor System

HPL/VINYL TYPE Cementitious Infill Steel Access Floor System

Designed specially for computer room & clean room
Excellent rolling load & ultimate load performance
Light weight cementitious fill makes panels solid and quiet
Completely non-combustible
Black electrodeposition cathodic epoxy paint finish for life time protection
Class A flame spread and smoke development rating
Wide range of finishes available

RIGID GRID SYSTEM (24x24x1.25” and 600x600x32mm)

Designed specially for computer room & clean room
PVC taped stringer provide excellent Air Leakage Rate
Excellent seismic proof performance
Maximum Finished Floor Height:1200 mm

DESIGNER HPL/VINYL LAMINATES

Designer laminates are available in many different finishes

TOP SET TRIM OR TRIMLESS PANELS

Top set trim provides a protective edge
Trimless panels also available

CONDUCTIVE & ANTISTATIC/DISSIPATIVE HPL/VINYL TILE

Available in many colors
Conductive:2.5×10^4 ~ 1.0×10^6 ohms
Antistatic/Dissipative:1.0×10^6 ~ 1.0×10^10 ohms

PERFORATED PANEL (24x24x1.25” and 600x600x32mm)

Provide optimum laminar airflow, without turbulence
Up to 20% airflow rate
Damper optional

PERFORMANCE SELECTION CHART

Jindao FS800H/FS1000H/FS1250H/FS2000H HPL Finished Cementitious Infill Steel Access Floor Panel With Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
FS800H	Medium	3	3.6	50	3	12	14.5
FS1000H	Heavy	4.5	4.5	50	3	20	15.5
FS1250H	Extra Heavy	5.5	5.5	50	3	30	16.5

Jindao FS800HN/FS1000HN/FS1250HN/FS2000HN HPL Finished Cementitious Infill Steel Access Floor Panel Without Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
FS800HN	Medium	3	3.6	50	3	12	14.5
FS1000HN	Heavy	4.5	4.5	50	3	20	15.5
FS1250HN	Extra Heavy	5.5	5.5	50	3	30	16.5

Jindao FS800V/FS1000V/FS1250V/FS2000V Vinyl Finished Cementitious Infill Steel Access Floor Panel With Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
FS800V	Medium	3	3.6	50	3	12	15
FS1000V	Heavy	4.5	4.5	50	3	20	16
FS1250V	Extra Heavy	5.5	5.5	50	3	30	17

Jindao FS800VN/FS1000VN/FS1250VN/FS2000VN Vinyl Finished Cementitious Infill Steel Access Floor Panel Without Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
FS800VN	Medium	3	3.6	50	3	12	15
FS1000VN	Heavy	4.5	4.5	50	3	20	16
FS1250VN	Extra Heavy	5.5	5.5	50	3	30	17

Jindao Rigid Grid System for HPL/Vinyl Finished Cementitious Infill Steel Access Floor System--- Pedestal/Stringer
Pedestal No.	Pedestal Height (mm)	Horizontal Load (kG)	Vertical Load (18 kN)	Pedestal Head	Pedestal Tube	Pedestal Base
FS-L-PST80	80 ± 20	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST100	100 ± 20	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST150	150 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST200	200 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST250	250 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST300	300 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST350	350 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST400	400 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST450	450 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST500	500 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST550	550 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST600	600 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST650	650 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST700	700 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST750	750 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST800	800 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST850	850 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST900	900 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST950	950 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1000	1000 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1050	1050 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1100	1100 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1150	1150 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1200	1200 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick

24” and 600mm Bare Finished Cementitious Infill Steel Access Floor System

BARE TYPE Cementitious Infill Steel Access Floor System

Designed specially for office building
Excellent rolling load & ultimate load performance
Light weight cementitious fill makes panels solid and quiet
Completely non-combustible
Black electrodeposition cathodic epoxy paint finish for life time protection
Class A flame spread and smoke development rating
All-steel pedestals provide excellent impact load performance

BOLTED STRINGER SYSTEM (24x24x1.25” and 600x600x32mm)

Designed specially for Underfloor Air Distribution office building
Trapeziform PVC taped stringer provide excellent Air Leakage Rate
Excellent seismic proof performance
Improved static load performance
Maximum Finished Floor Height:1200 mm

CORNER LOCK SYSTEM (24x24x1.25” and 600x600x32mm)

Designed specially for office building
Engineered positive engagement between panel and pedestal
Easy and quick accessibility
Excellent seismic proof performance
Maximum Finished Floor Height:800 mm

PERFORMANCE SELECTION CHART

Jindao FS800B/FS1000B/FS1250B/FS2000B Bare Finished Cementitious Infill Steel Access Floor Panel
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
FS800B	Medium	3	3.6	50	3	12	14
FS1000B	Heavy	4.5	4.5	50	3	20	15
FS1250B	Extra Heavy	5.5	5.5	50	3	30	16

Jindao Corner Lock System for Bare Finished Cementitious Infill Steel Access Floor System --- Pedestal
Pedestal No.	Pedestal Height (mm)	Horizontal Load (kG)	Vertical Load (18 kN)	Pedestal Head	Pedestal Tube	Pedestal Base
FS-B-PST80	80 ± 20	50	Did not collapse	□85mm cruciform	Ф 20mm × 2mm thick	□100mm × 2.5mm thick
FS-B-PST100	100 ± 20	50	Did not collapse	□85mm cruciform	Ф 20mm × 2mm thick	□100mm × 2.5mm thick
FS-B-PST150	150 ± 25	50	Did not collapse	□85mm cruciform	Ф 20mm × 2mm thick	□100mm × 2.5mm thick
FS-B-PST200	200 ± 25	50	Did not collapse	□85mm cruciform	Ф 20mm × 2mm thick	□100mm × 2.5mm thick
FS-B-PST250	250 ± 25	50	Did not collapse	□85mm cruciform	Ф 20mm × 2mm thick	□100mm × 2.5mm thick
FS-B-PST300	300 ± 25	50	Did not collapse	□85mm cruciform	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-B-PST350	350 ± 25	50	Did not collapse	□85mm cruciform	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-B-PST400	400 ± 25	50	Did not collapse	□85mm cruciform	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-B-PST450	450 ± 25	50	Did not collapse	□85mm cruciform	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-B-PST500	500 ± 25	50	Did not collapse	□85mm cruciform	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-B-PST550	550 ± 25	50	Did not collapse	□85mm cruciform	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-B-PST600	600 ± 25	50	Did not collapse	□85mm cruciform	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-B-PST650	650 ± 25	50	Did not collapse	□85mm cruciform	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-B-PST700	700 ± 25	50	Did not collapse	□85mm cruciform	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-B-PST750	750 ± 25	50	Did not collapse	□85mm cruciform	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-B-PST800	800 ± 25	50	Did not collapse	□85mm cruciform	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick

Jindao Corner Lock System for Bare Finished Cementitious Infill Steel Access Floor System --- Pedestal
Pedestal No.	Pedestal Height (mm)	Horizontal Load (kG)	Vertical Load (18 kN)	Pedestal Head	Pedestal Tube	Pedestal Base
FS-L-PST80	80 ± 20	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST100	100 ± 20	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST150	150 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST200	200 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST250	250 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST300	300 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST350	350 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST400	400 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST450	450 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST500	500 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST550	550 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST600	600 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST650	650 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST700	700 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST750	750 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST800	800 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST850	850 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST900	900 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST950	950 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1000	1000 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1050	1050 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1100	1100 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1150	1150 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1200	1200 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick

Carpet Tile

Vinyl Sheet

Vinyl Tile

Stair Noising

Raised Floor

Vinyl Transport

Wallpaper

TOLI Carpet Tile

Toli Vinyl Sheet

TOLI Vinyl Tile

TOLI Wallpaper

Stair Noising

Raised Floor

Vinyl Transport

Send your Inquiry

Chat with us via WhatsApp

Login
