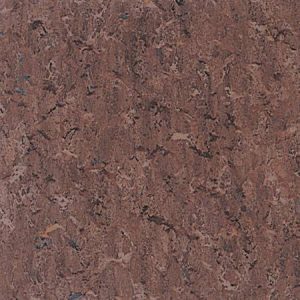

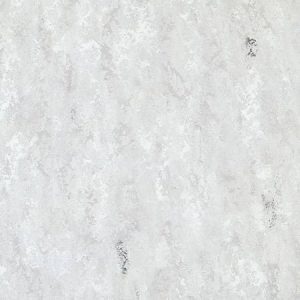

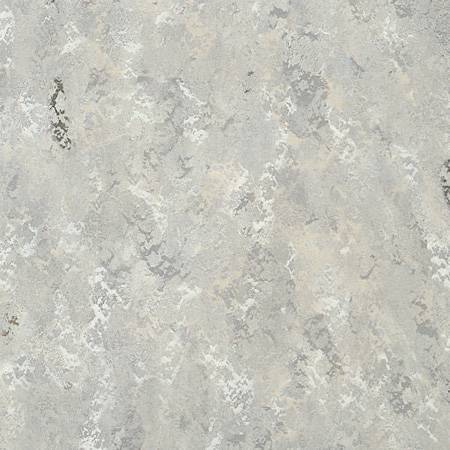

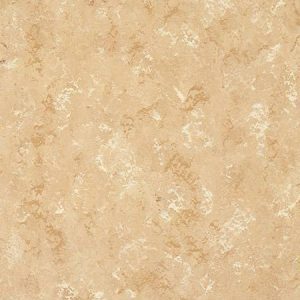

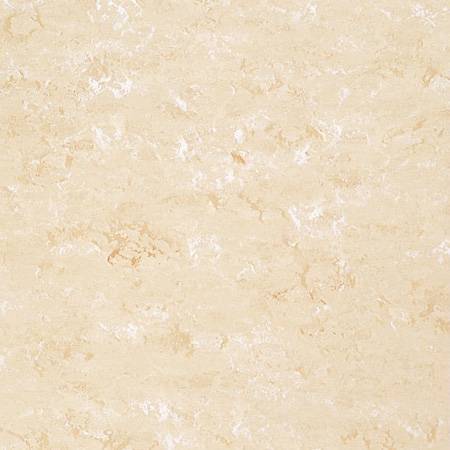

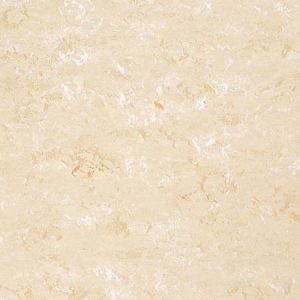

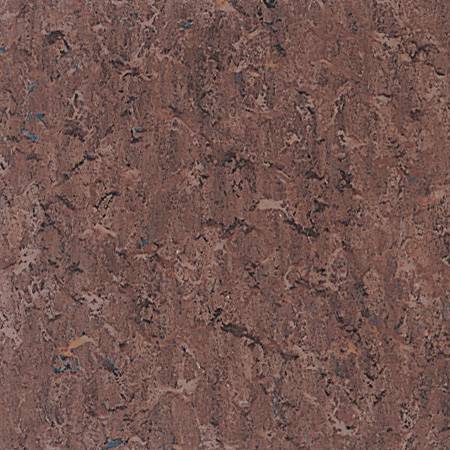

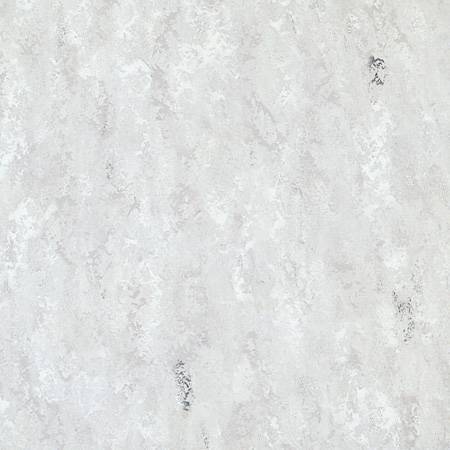

Linotesta is a design-oriented VCT low maintenace floor tile with a natural linoleum look. Linotesta performs well in any commercial environment.

Benefits:

Hardwearing & Excellent Durability
Easy to Clean
Water Resistant
Sound Reduction
Rated Very Heavy Duty
FloorScore ® Indoor Air Quality Certified

Features:

Tile Size: 450mm x 450mm
Thickness: 3mm high durability UV resin coating
14 PCS/case (2.83㎡)
19.0kg/case
Pre Waxed Surface

Suitable For:

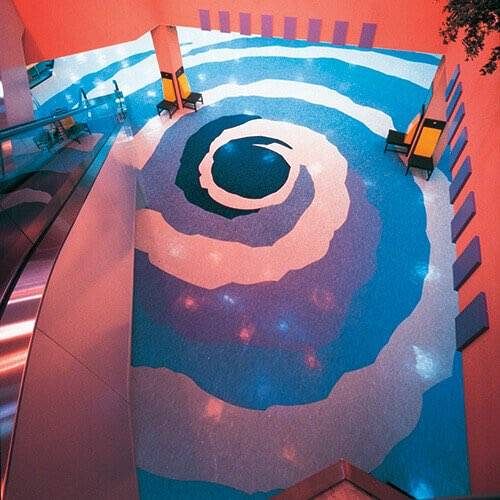

Commercial Interiors, Shopping Malls, Airports, Retail, Education and Healthcare

Please note:

This product is supplied to order and is subject to minimum order quantities

Jindao HS800H/HS1000H/HS1250H HPL Finished Hollow Steel Access Floor Panel With Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800H	Medium	3	3.6	50	3	12	8
HS1000H	Heavy	4.5	4.5	50	3	20	10
HS1250H	Extra Heavy	5.5	5.5	50	3	30	12

Jindao HS800HN/HS1000HN/HS1250HN HPL Finished Hollow Steel Access Floor Panel Without Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800HN	Medium	3	3.6	50	3	12	8
HS1000HN	Heavy	4.5	4.5	50	3	20	10
HS1250HN	Extra Heavy	5.5	5.5	50	3	30	12

Jindao HS800V/HS1000V/HS1250V Vinyl Finished Hollow Steel Access Floor Panel With Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800V	Medium	3	3.6	50	3	12	8
HS1000V	Heavy	4.5	4.5	50	3	20	10
HS1250V	Extra Heavy	5.5	5.5	50	3	30	12

Jindao HS800VN/HS1000VN/HS1250VN Vinyl Finished Hollow Steel Access Floor Panel Without Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800VN	Medium	3	3.6	50	3	12	8
HS1000VN	Heavy	4.5	4.5	50	3	20	10
HS1250VN	Extra Heavy	5.5	5.5	50	3	30	12

Jindao Rigid Grid System for HPL/Vinyl Finished Hollow Steel Access Floor System--- Pedestal/Stringer
Pedestal No.	Pedestal Height (mm)	Horizontal Load (kG)	Vertical Load (18 kN)	Pedestal Head	Pedestal Tube	Pedestal Base
FS-L-PST80	80 ± 20	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST100	100 ± 20	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST150	150 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST200	200 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST250	250 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST300	300 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST350	350 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST400	400 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST450	450 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST500	500 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST550	550 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST600	600 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST650	650 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST700	700 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST750	750 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST800	800 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST850	850 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST900	900 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST950	950 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1000	1000 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1050	1050 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1100	1100 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1150	1150 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1200	1200 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick

Jindao 500mm OA800A/0A800C/OA1000A/OA1000C Bare Finished OA Floor Panel
Panel Type	Description	Concentrated Load/Deflection (kN/mm)	Ultimate Load (kN)	Standard FFH	Weight (kG/m2)
OA800A	300kG Solid OA Floor Panel	Center of the panel: 5000/2.0 Center of the edge: 5000/2.5	Center of the panel: 15000 Center of the edge: 12000	70~200 mm	36
OA800C	300kG Dual Cutout OA Floor Panel	Center of the panel: 4500/2.0 Center of the edge: 4500/2.5	Center of the panel: 12000 Center of the edge: 10000	70~200 mm	36
OA1000A	500kG Solid OA Floor Panel	Center of the panel: 6000/2.0 Center of the edge: 6000/2.5	Center of the panel: 18000 Center of the edge: 14000	70~200 mm	39.6
OA1000C	500kG Dual Cutout OA Floor Panel	Center of the panel: 5500/2.0 Center of the edge: 5500/2.5	Center of the panel: 15000 Center of the edge: 12000	70~200 mm	39.6
