Solid Line

GA100 Solid Line Carpet Tile collection is the most versatile and robust carpet tile range on the market that can work in a variety of segments. It offers an aesthetic textile solution that works perfectly in any workspace.

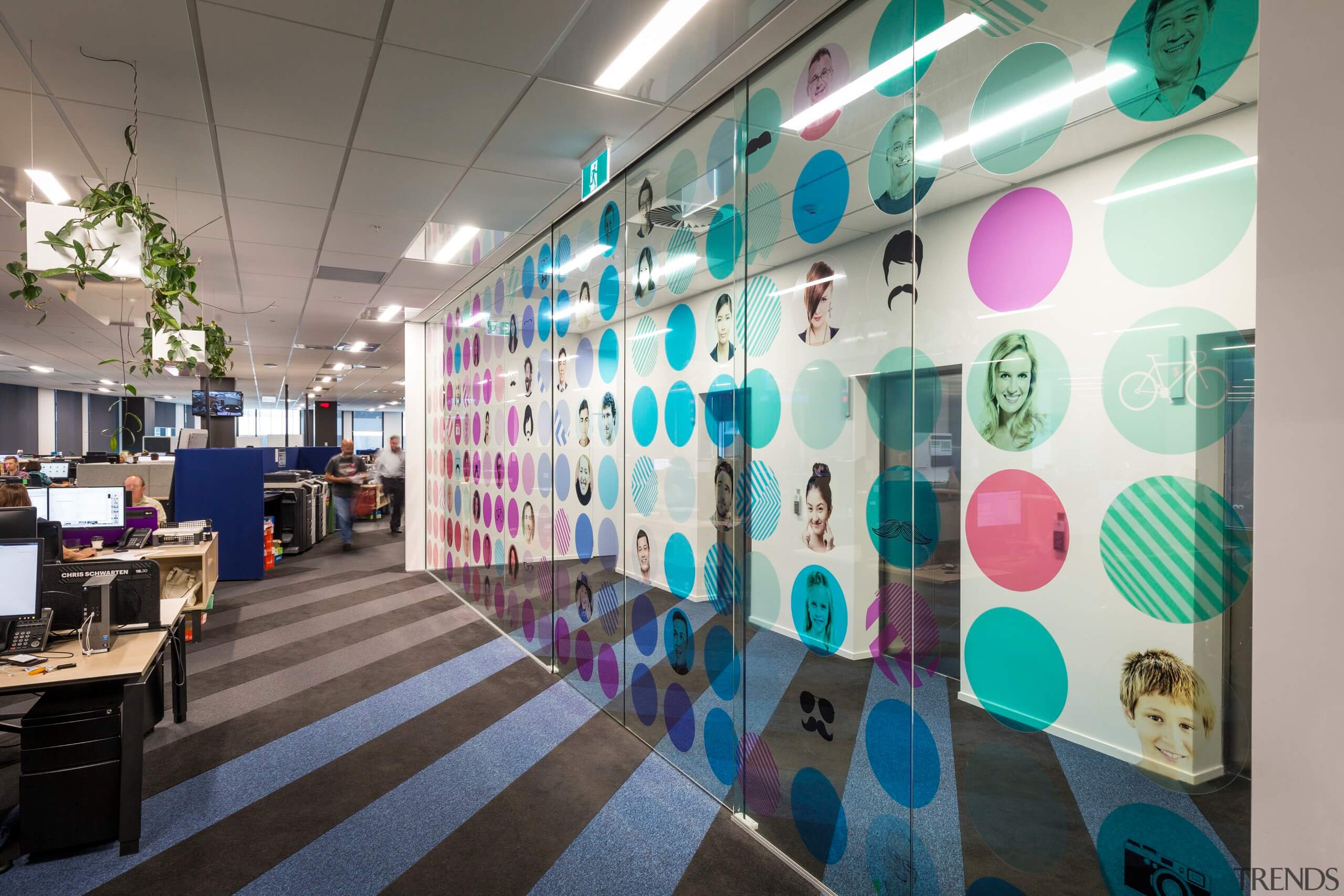

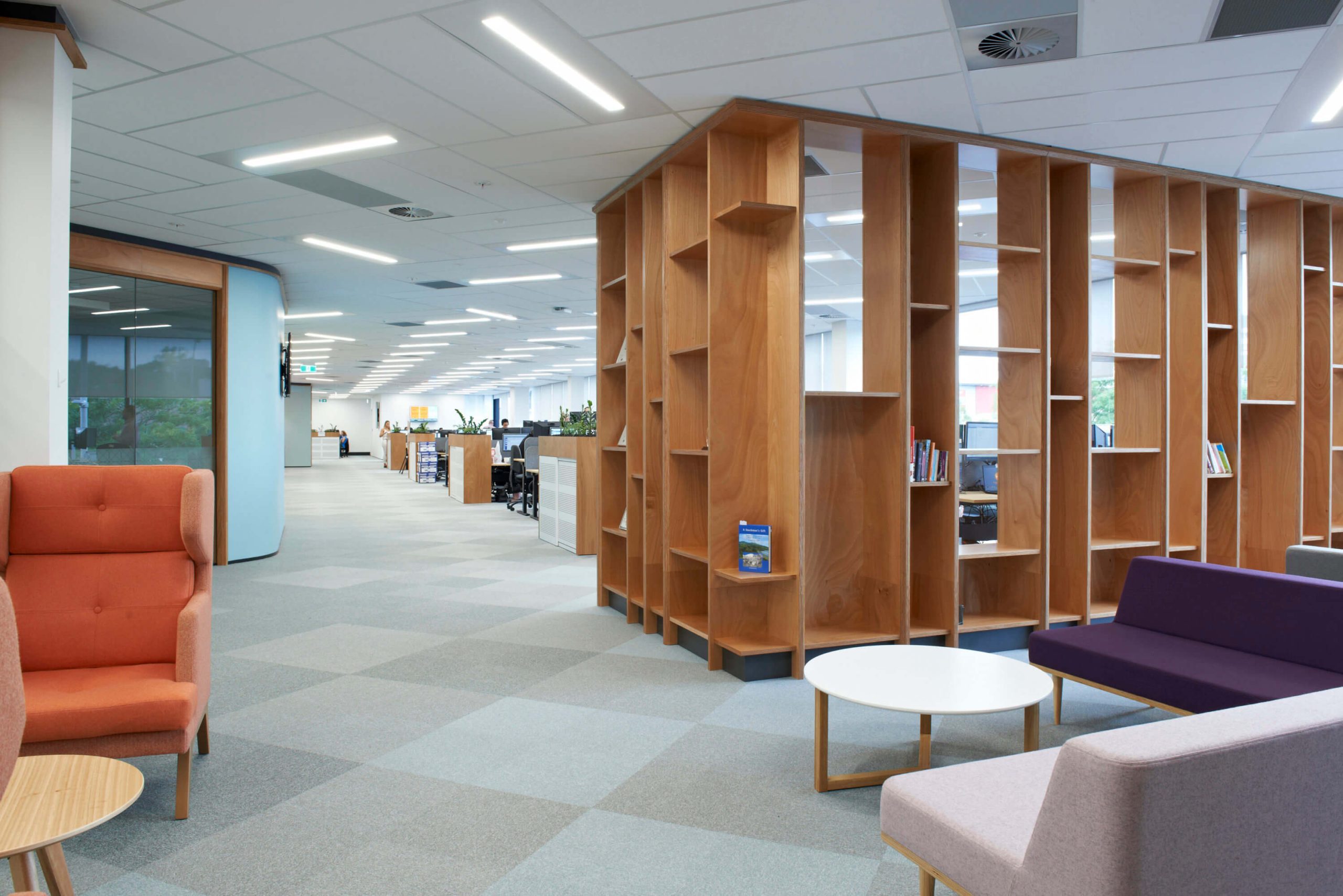

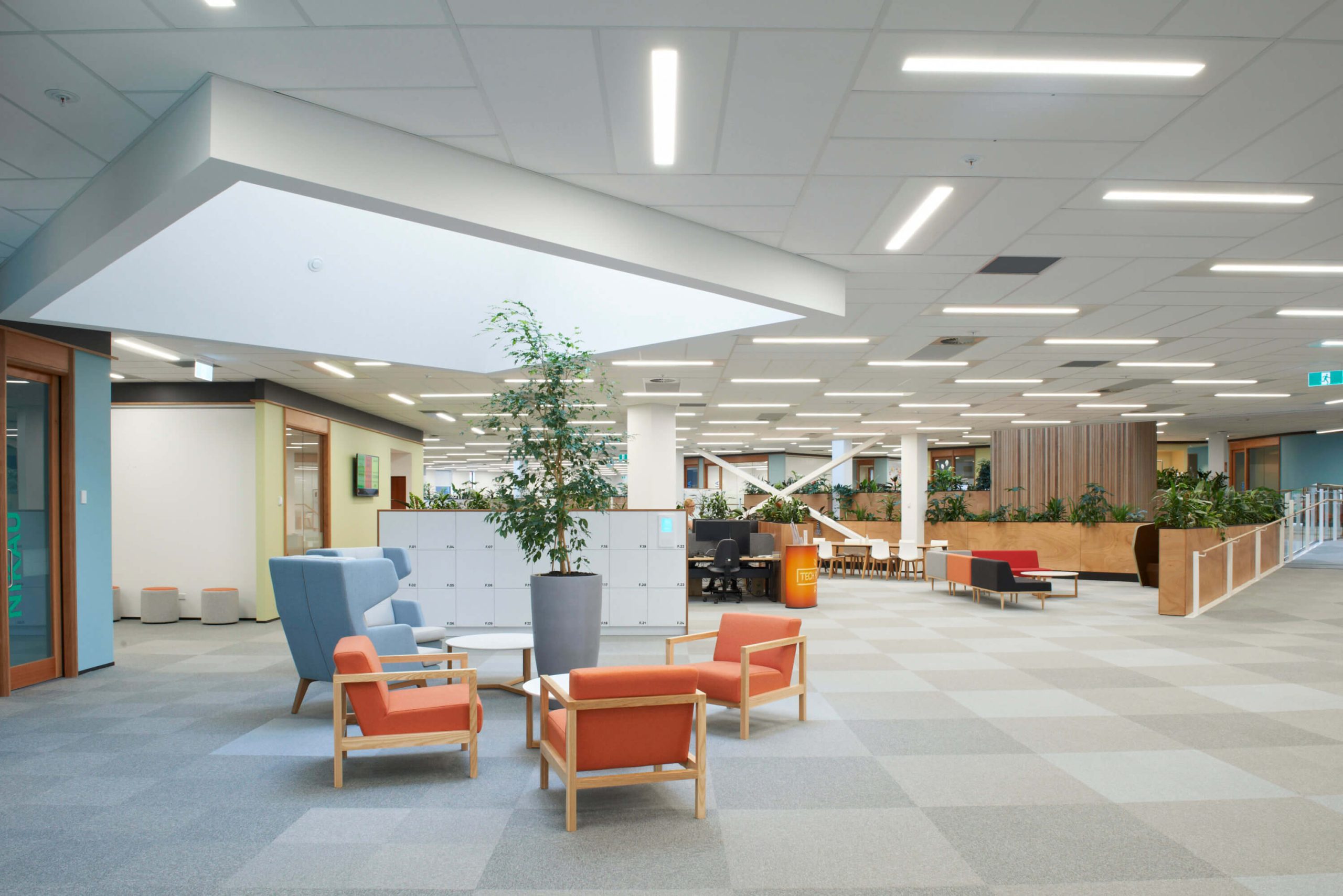

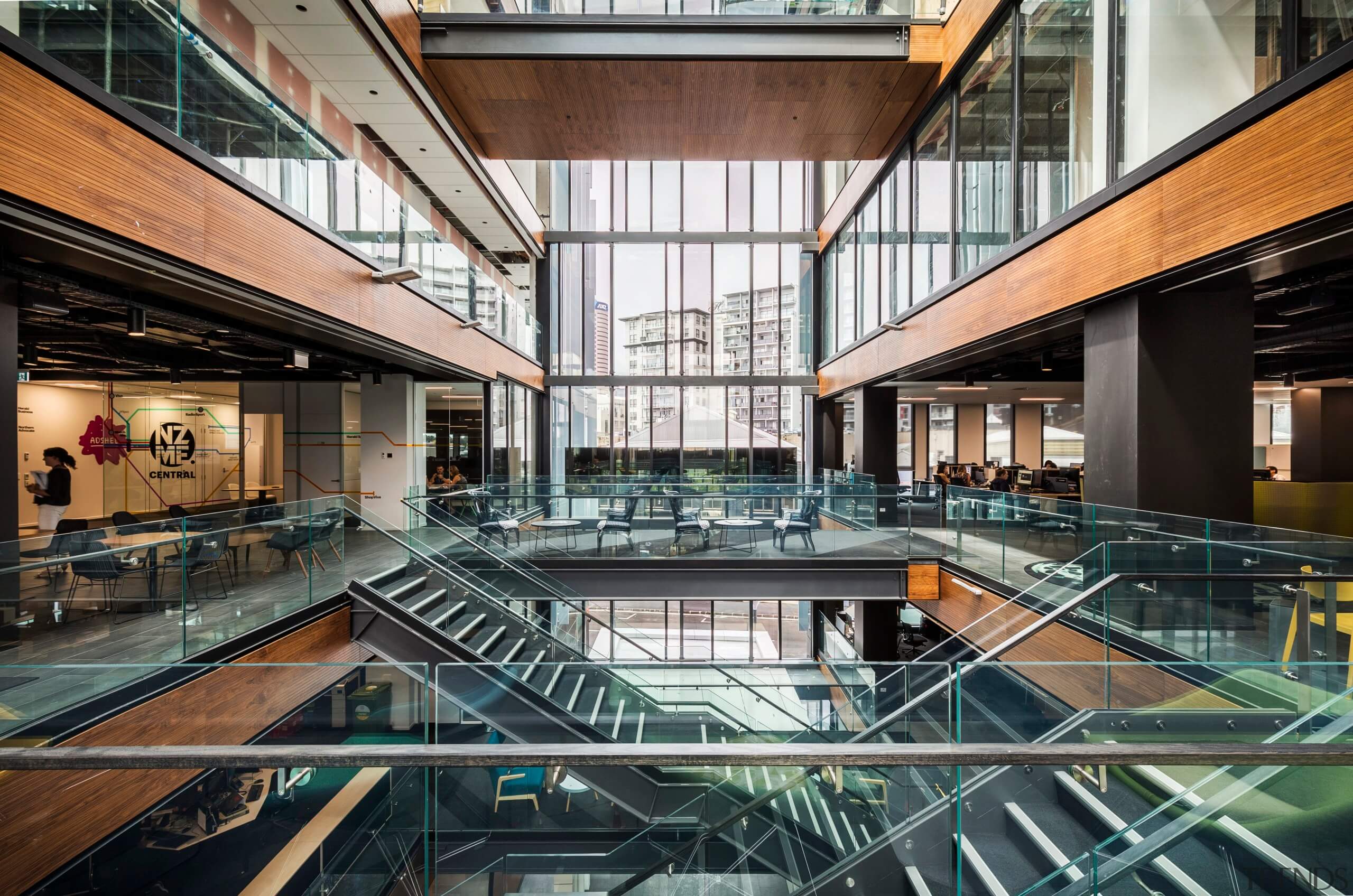

Solid Line collection outperforms the rest and is trusted by Genesis Energy, Toyota and NZME.

With its top-selling history for more than 30 years, Solid Line carpet tiles provide impeccable performance features for your floor.

You can creatively mix & match tiles to meet your design requirements…

Key Benefits:

Environmental Certification Scheme ECS Certified Level 4
CRI Green Label Plus Certified
Low Carbon
Low VOC
Environmental Management System Certified: ISO 14001
Robust
Durable & Hard Wearing
Stain Resistant
Anti-Static
Effortless Installation

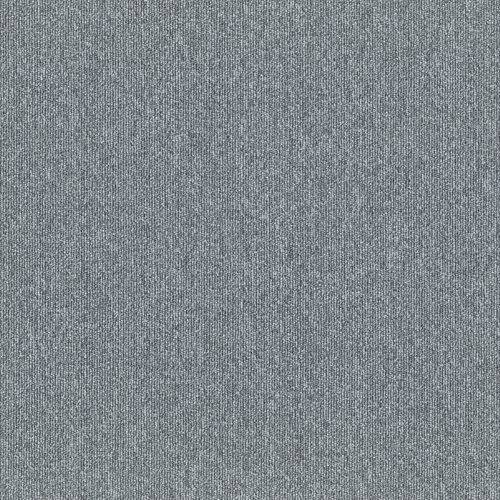

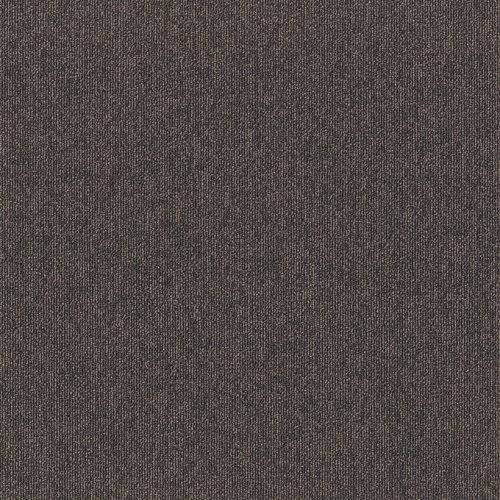

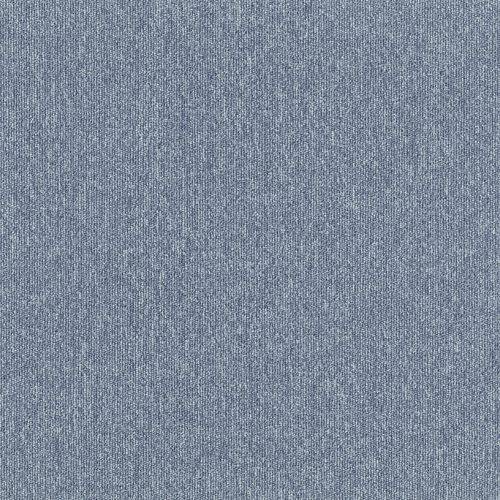

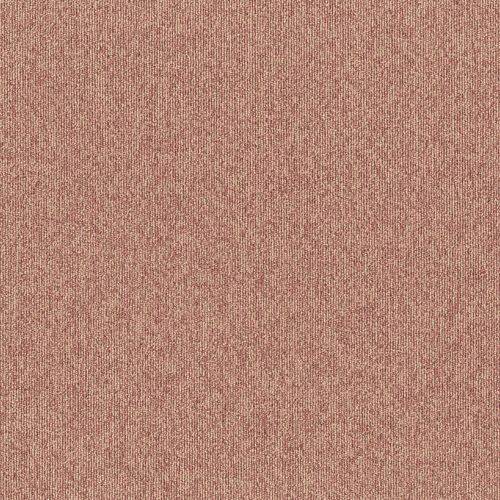

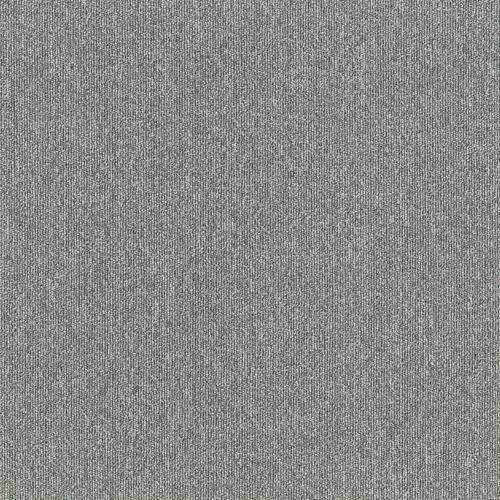

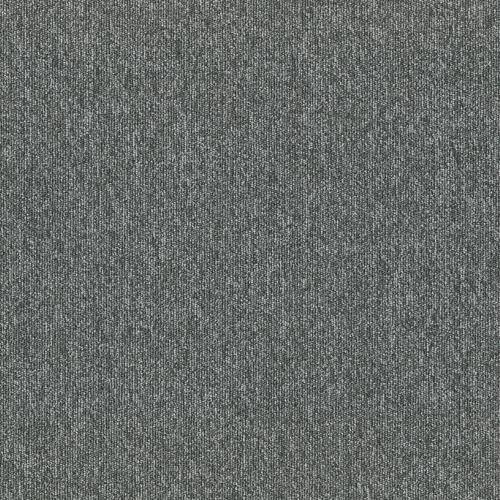

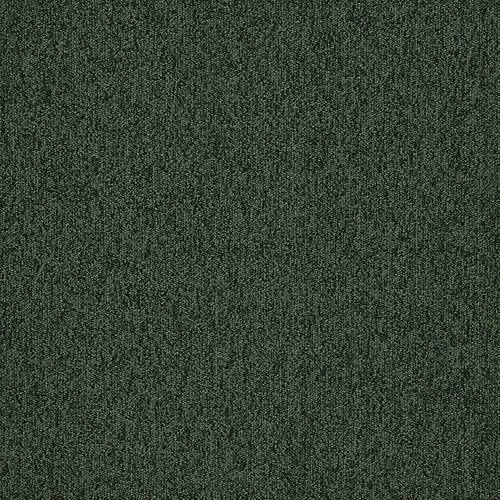

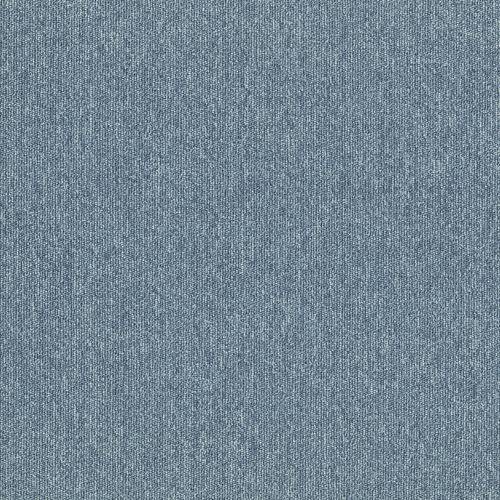

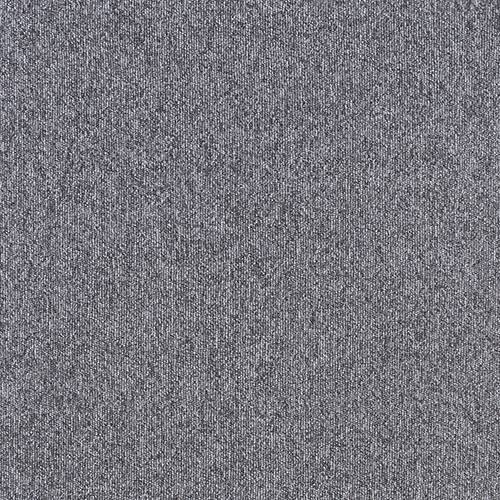

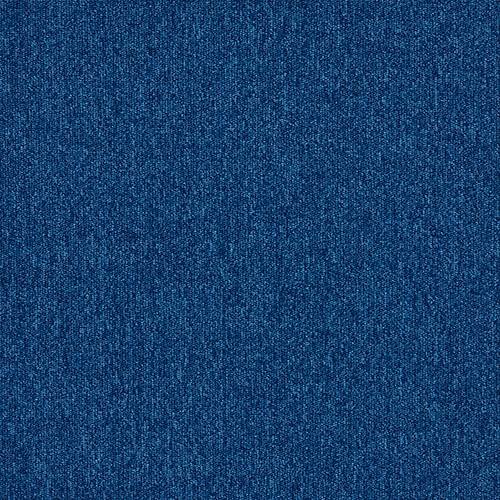

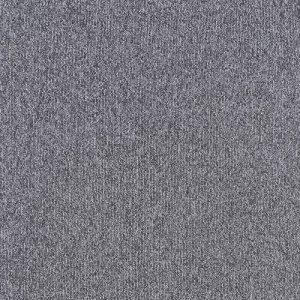

35 Colourways
Mix & Match with different collections and planks
Flame Resistant
Critical Radiant Flux Fire Test 3.9kW/m2 Tested to ASISO 9239.1-2003 (ISO9239 Part 1)

Features:

Tile Size: 500mm x 500mm
(*): Nano Clean Stain Resistant Technology

Suitable For:

Commercial, Healthcare, Retail, Education and Hospitality

Jindao HS800H/HS1000H/HS1250H HPL Finished Hollow Steel Access Floor Panel With Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800H	Medium	3	3.6	50	3	12	8
HS1000H	Heavy	4.5	4.5	50	3	20	10
HS1250H	Extra Heavy	5.5	5.5	50	3	30	12

Jindao HS800HN/HS1000HN/HS1250HN HPL Finished Hollow Steel Access Floor Panel Without Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800HN	Medium	3	3.6	50	3	12	8
HS1000HN	Heavy	4.5	4.5	50	3	20	10
HS1250HN	Extra Heavy	5.5	5.5	50	3	30	12

Jindao HS800V/HS1000V/HS1250V Vinyl Finished Hollow Steel Access Floor Panel With Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800V	Medium	3	3.6	50	3	12	8
HS1000V	Heavy	4.5	4.5	50	3	20	10
HS1250V	Extra Heavy	5.5	5.5	50	3	30	12

Jindao HS800VN/HS1000VN/HS1250VN Vinyl Finished Hollow Steel Access Floor Panel Without Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800VN	Medium	3	3.6	50	3	12	8
HS1000VN	Heavy	4.5	4.5	50	3	20	10
HS1250VN	Extra Heavy	5.5	5.5	50	3	30	12

Jindao Rigid Grid System for HPL/Vinyl Finished Hollow Steel Access Floor System--- Pedestal/Stringer
Pedestal No.	Pedestal Height (mm)	Horizontal Load (kG)	Vertical Load (18 kN)	Pedestal Head	Pedestal Tube	Pedestal Base
FS-L-PST80	80 ± 20	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST100	100 ± 20	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST150	150 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST200	200 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST250	250 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST300	300 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST350	350 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST400	400 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST450	450 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST500	500 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST550	550 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST600	600 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST650	650 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST700	700 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST750	750 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST800	800 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST850	850 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST900	900 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST950	950 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1000	1000 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1050	1050 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1100	1100 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1150	1150 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1200	1200 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick

Jindao 500mm OA800A/0A800C/OA1000A/OA1000C Bare Finished OA Floor Panel
Panel Type	Description	Concentrated Load/Deflection (kN/mm)	Ultimate Load (kN)	Standard FFH	Weight (kG/m2)
OA800A	300kG Solid OA Floor Panel	Center of the panel: 5000/2.0 Center of the edge: 5000/2.5	Center of the panel: 15000 Center of the edge: 12000	70~200 mm	36
OA800C	300kG Dual Cutout OA Floor Panel	Center of the panel: 4500/2.0 Center of the edge: 4500/2.5	Center of the panel: 12000 Center of the edge: 10000	70~200 mm	36
OA1000A	500kG Solid OA Floor Panel	Center of the panel: 6000/2.0 Center of the edge: 6000/2.5	Center of the panel: 18000 Center of the edge: 14000	70~200 mm	39.6
OA1000C	500kG Dual Cutout OA Floor Panel	Center of the panel: 5500/2.0 Center of the edge: 5500/2.5	Center of the panel: 15000 Center of the edge: 12000	70~200 mm	39.6

Key Benefits:

Features:

Suitable For:
