CALMGRAIN GX-5100 Carpet Tile

Material Pile: 100% BCF Nylon, Solution Dyed
Base Fabric: Nonwoven Polyester
Backing: PVC & Glass Fiber
Ukuran Tile: 500 × 500 mm (50 cm × 50 cm)
Ketebalan Total: 8,0 mm (Pile Height: 6,0–3,0 mm / Textured Loop Pile)
Packing: 1 Box = 16 pcs (4 m²)
Berat: 23,2 kg / box
Instalasi: Monolithic atau Quarter Turn
Fitur Utama: Stain resistant, anti-static, flame retardant, dan Critical Radiant Flux ASTM E648 Class 1.

CALMGRAIN GX-5100 Carpet Tile

CALMGRAIN GX-5100 Carpet Tile merupakan karpet tile dengan karakter high-low loop pile yang kaya akan volume, dipadukan dengan campuran yarn berwarna gelap. Kombinasi tekstur tersebut memberikan kesan sophisticated dan berkarakter pada interior.

Dengan format modular 50 × 50 cm dan pilihan instalasi monolithic atau quarter turn, CALMGRAIN GX-5100 dapat digunakan sebagai solusi commercial carpet tile untuk berbagai kebutuhan interior, termasuk ruang kerja dan area komersial.

Keunggulan Karpet Tile

High-low loop pile dengan volume tekstur yang kaya
Campuran deep-colored yarn untuk karakter visual yang sophisticated
Tekstur berkarakter untuk berbagai konsep interior
Durable & hard wearing
Stain resistant
Anti-static
Flame resistant
Critical Radiant Flux ASTM E648 Class 1
Pilihan instalasi monolithic atau quarter turn

Spesifikasi Karpet Tile

Kode Produk	GX-5100
Material Pile	100% BCF Nylon, Solution Dyed
Backing	PVC & Glass Fiber
Ukuran Tile	500 × 500 mm (50 cm × 50 cm)
Ketebalan Total	8,0 mm
Pile	Textured Loop Pile, 6,0–3,0 mm
Packing	16 pcs / box = 4 m² / box
Instalasi	Monolithic atau Quarter Turn

Aplikasi Karpet Tile

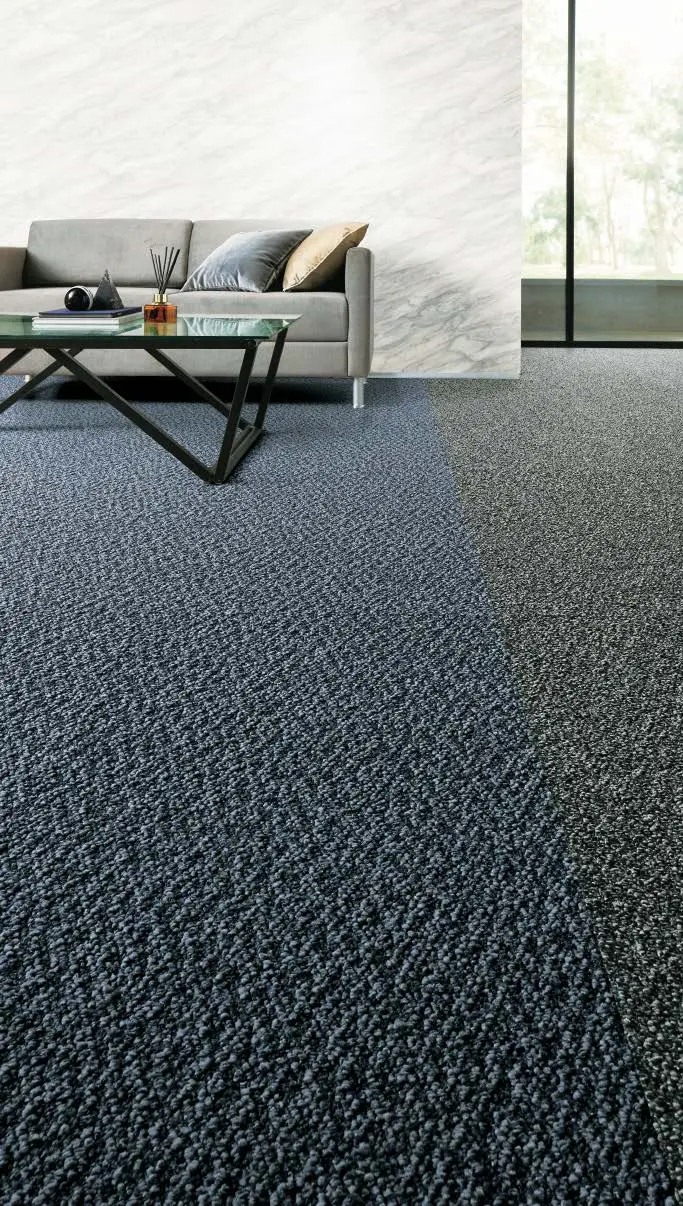

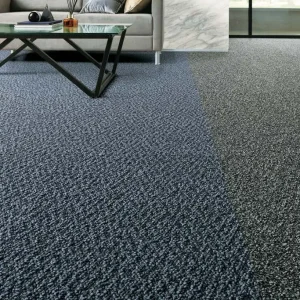

CALMGRAIN GX-5100 Carpet Tile dapat digunakan untuk berbagai kebutuhan interior komersial yang membutuhkan karakter lantai yang sophisticated, tekstur yang kuat, dan fleksibilitas pemasangan. Format modular 50 × 50 cm juga sesuai untuk kebutuhan karpet tile kantor dan ruang kerja komersial.

Commercial
Healthcare
Retail
Education
Hospitality

Selain CALMGRAIN GX-5100, Anda juga dapat melihat berbagai pilihan carpet tile dari koleksi TOLI GX untuk menemukan desain dan tekstur yang sesuai dengan kebutuhan proyek Anda.

Jelajahi TOLI GX Collection →

Pilihan Warna Karpet Tile

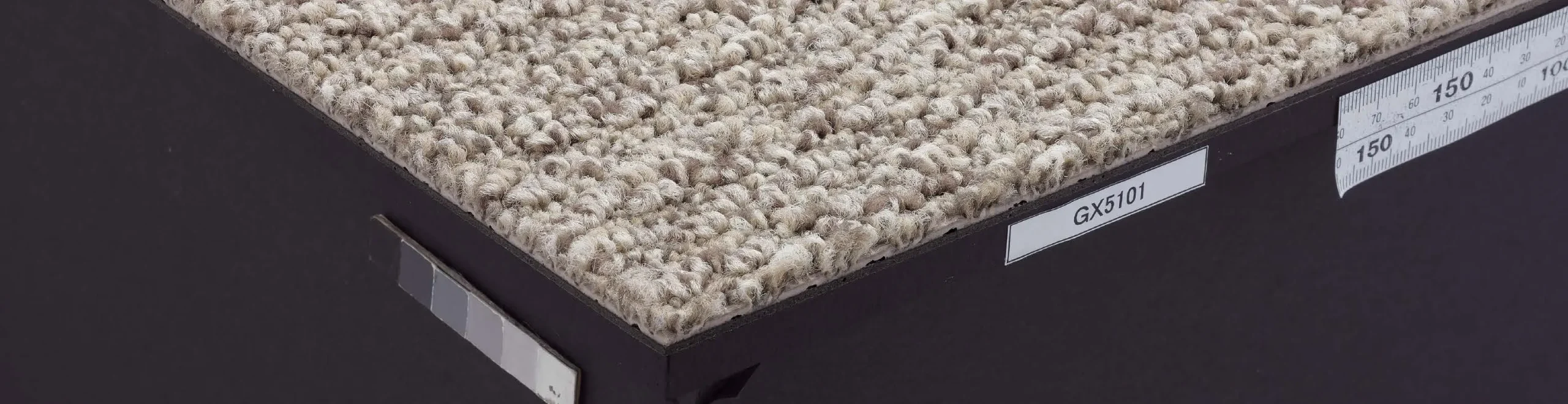

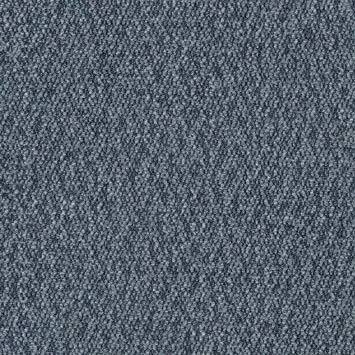

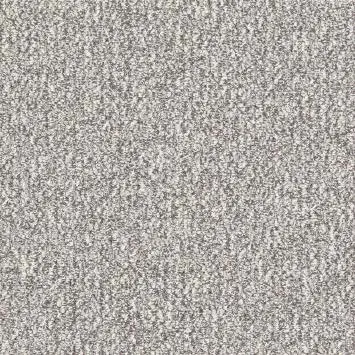

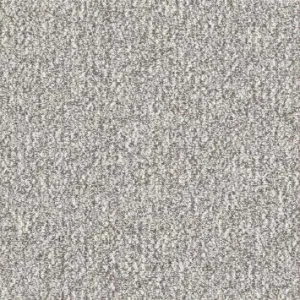

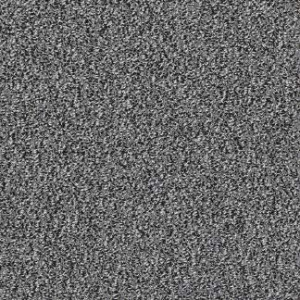

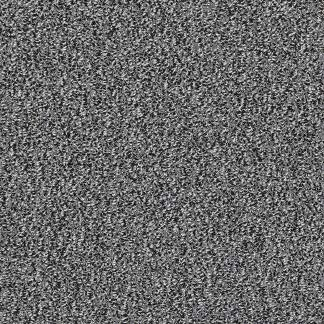

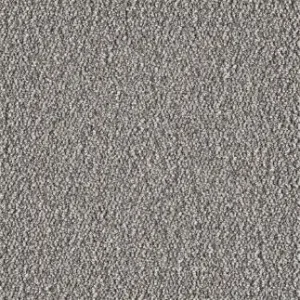

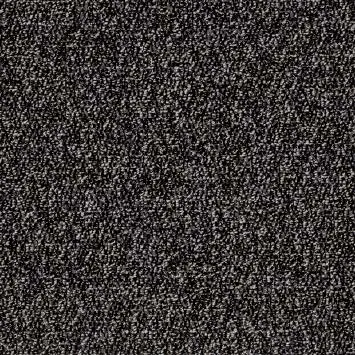

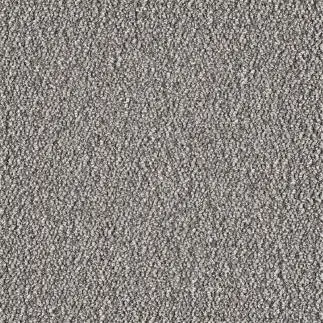

CALMGRAIN GX-5100 tersedia dalam enam pilihan warna, yaitu GX5107, GX5101, GX5104, GX5103, GX5102, dan GX5108. Pilihan warna dapat disesuaikan dengan konsep dan kebutuhan desain interior.

Katalog GX Series

Lihat katalog GX Series untuk informasi lebih lanjut mengenai pilihan produk, warna, spesifikasi, dan detail koleksi TOLI Carpet Tile.

Download Katalog

Konsultasikan kebutuhan produk, pilihan warna, spesifikasi, dan kebutuhan proyek Anda.

Konsultasikan Kebutuhan Karpet Tile
