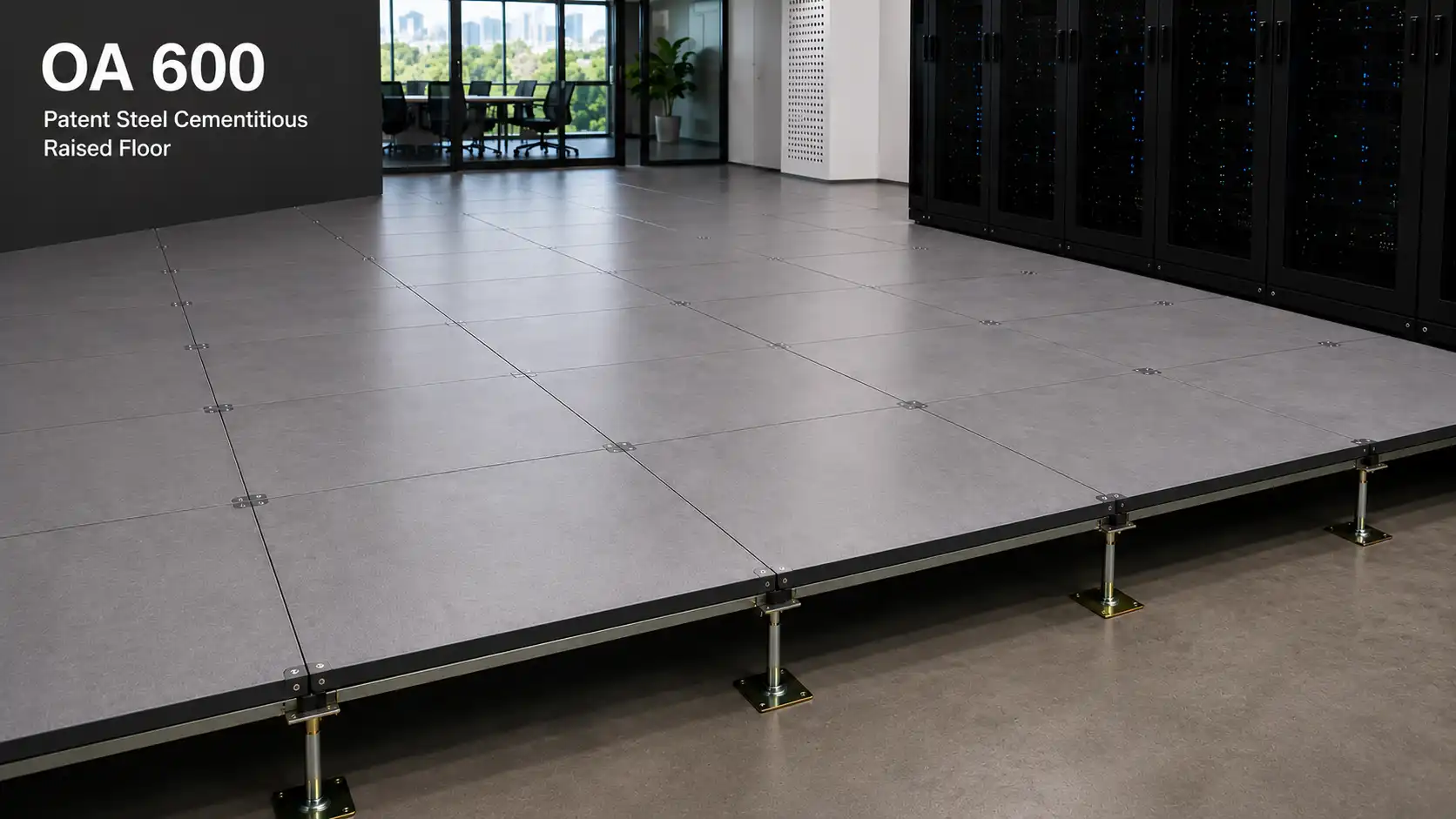

OA 600 Steel Cementitious Raised Floor

OA 600 Steel Cementitious Raised Floor adalah raised floor panel berukuran 600 × 600 mm dengan konstruksi baja dan inti foamed cement yang dirancang untuk kebutuhan lantai akses dengan kapasitas beban tinggi.

Panel menggunakan pelat atas SPCC cold-rolled steel, pelat bawah ST14 steel, dan inti foamed cement dengan lapisan epoxy tahan aus dan korosi. Sistem ini cocok dipertimbangkan untuk berbagai kebutuhan raised floor panels 600×600 pada proyek bangunan dan ruang teknis.

Untuk kebutuhan raised floor dengan karakter anti-static, Anda dapat mempertimbangkan Steel Cementitious Raised Floor 600×600 mm.

Keunggulan Raised Floor

Kapasitas beban tinggi untuk menyesuaikan kebutuhan proyek
Konstruksi baja SPCC dan ST14 dengan inti foamed cement
64 ball stretches dan 19 embossments untuk meningkatkan performa beban pada bagian tengah panel
Empat corner lock holes untuk mendukung sistem pemasangan panel
Lapisan epoxy tahan aus dan korosi
All-steel construction dengan fire-resistance yang baik
Ukuran panel presisi dan interchangeable

Spesifikasi Raised Floor

Jenis Produk	OA 600 Steel Access Floor
Ukuran Panel	600 × 600 mm
Ketebalan Panel	33,4 mm
Pelat Atas	SPCC Cold-Rolled Steel
Pelat Bawah	ST14 Steel
Inti Panel	Foamed Cement
Finishing	Dark-Grey Wear-Resistant Epoxy Coating
Fire Rating	Fire-Resistance

Kapasitas Beban dan Model Raised Floor

OA 600 Steel Cementitious Raised Floor tersedia dalam beberapa model dengan kapasitas beban berbeda.

Tipe	Beban Terpusat	Ultimate Load
FS800	364 kg	1.148 kg
FS1000	455 kg	1.363 kg
FS1250	569 kg	1.703 kg
FS1500	682 kg	2.724 kg
FS2000	910 kg	3.177 kg

Maxgrid juga menyediakan OAS 600 Patent Steel Cementitious Raised Floor sebagai alternatif dalam kelompok panel 600 mm.

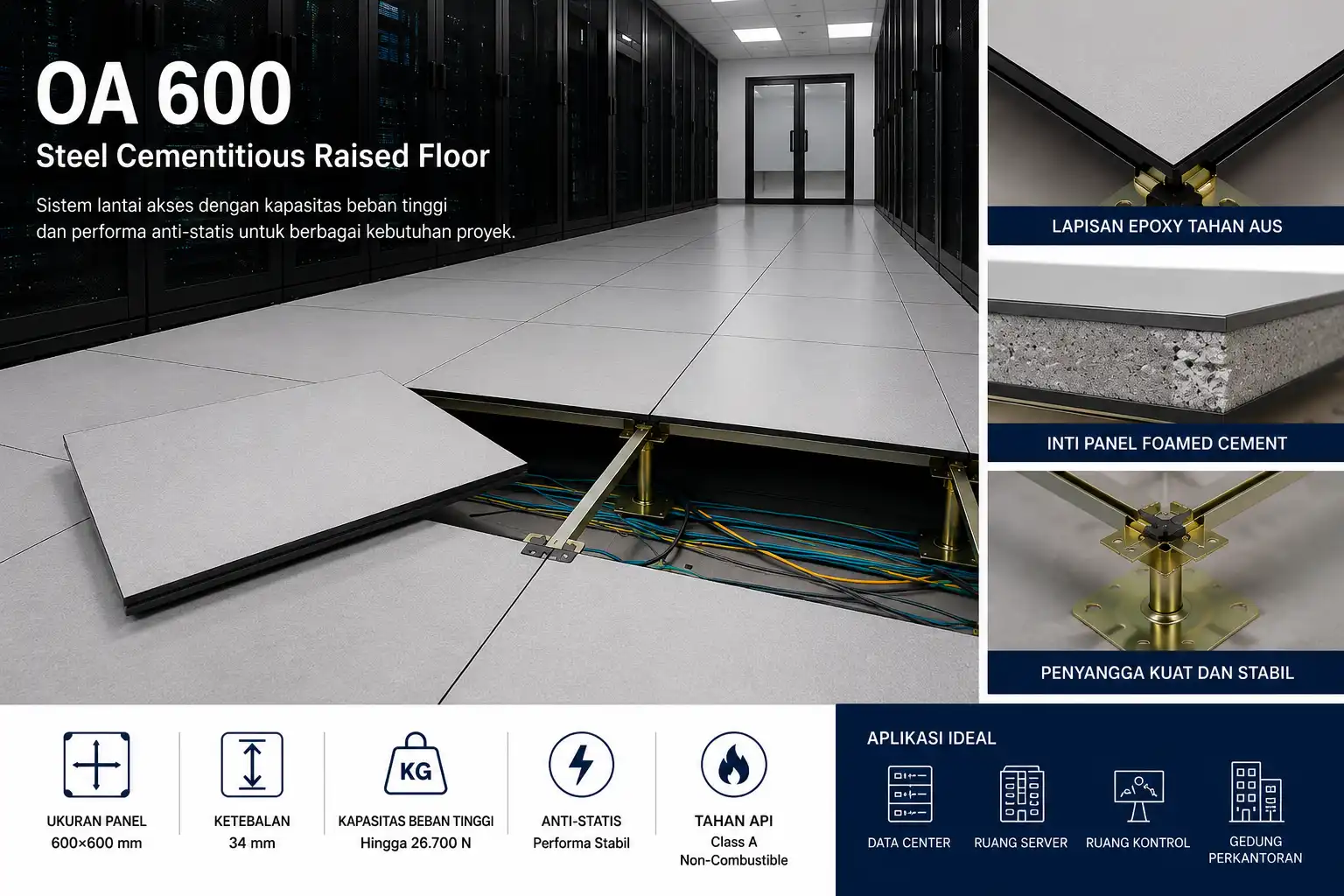

Panel Construction

OA 600 Steel Access Floor menggunakan pelat atas SPCC cold-rolled steel dan pelat bawah ST14 steel. Kedua pelat disatukan melalui automatic spot welding dan panel diisi dengan foamed cement untuk membentuk struktur raised floor yang kuat.

Panel memiliki empat corner lock holes serta 64 ball stretches dan 19 embossments untuk membantu meningkatkan performa beban pada bagian tengah panel.

Struktur Panel

Kombinasi SPCC steel, foamed cement, dan ST14 steel memberikan konstruksi panel yang kuat dan stabil untuk sistem raised access floor.

Penguatan Panel

Panel dilengkapi 64 ball stretches dan 19 embossments yang dirancang untuk meningkatkan performa beban pada bagian tengah panel.

Surface Finish

Permukaan panel menggunakan dark-grey wear-resistant epoxy coating yang memberikan perlindungan terhadap keausan dan korosi.

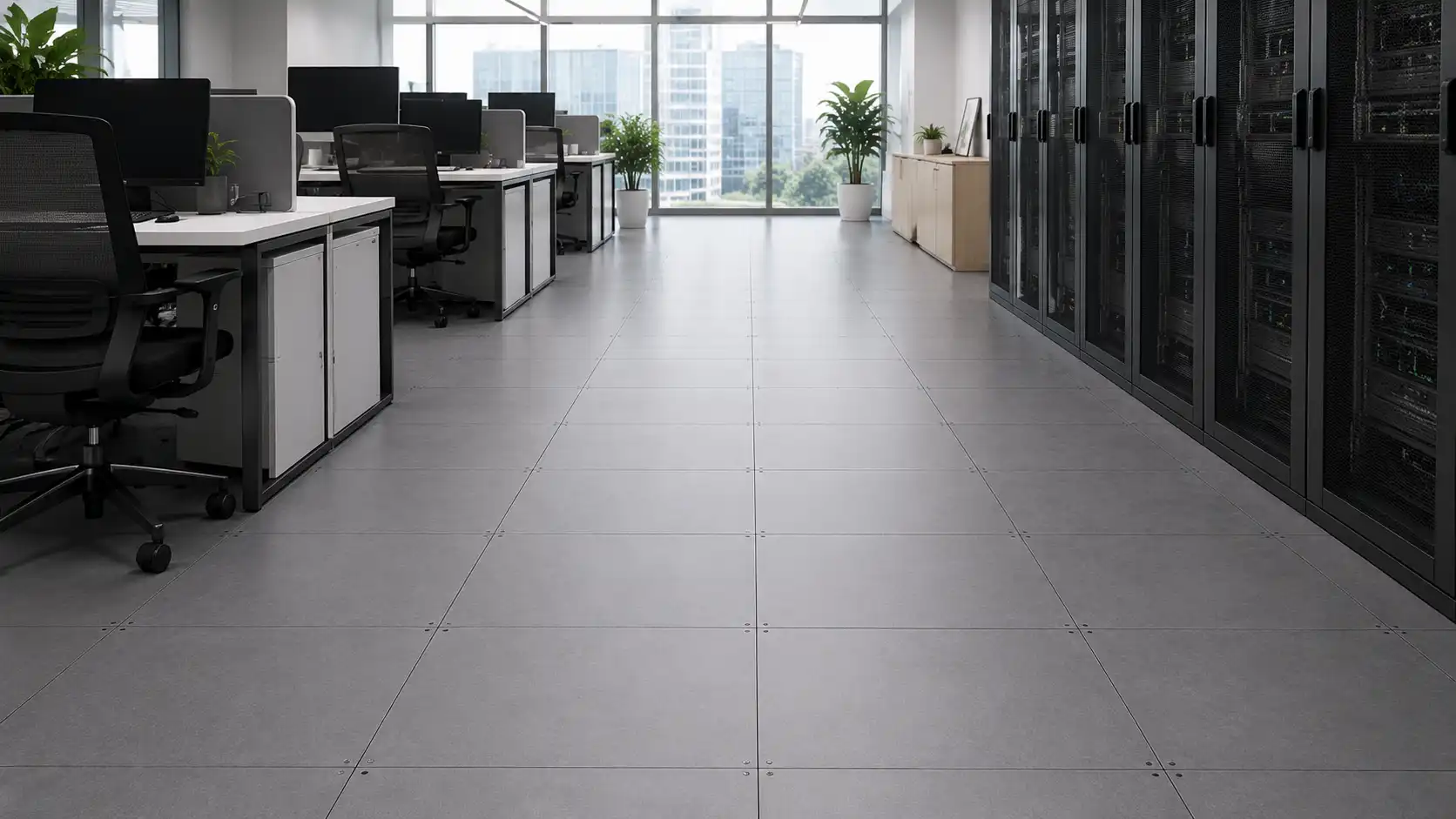

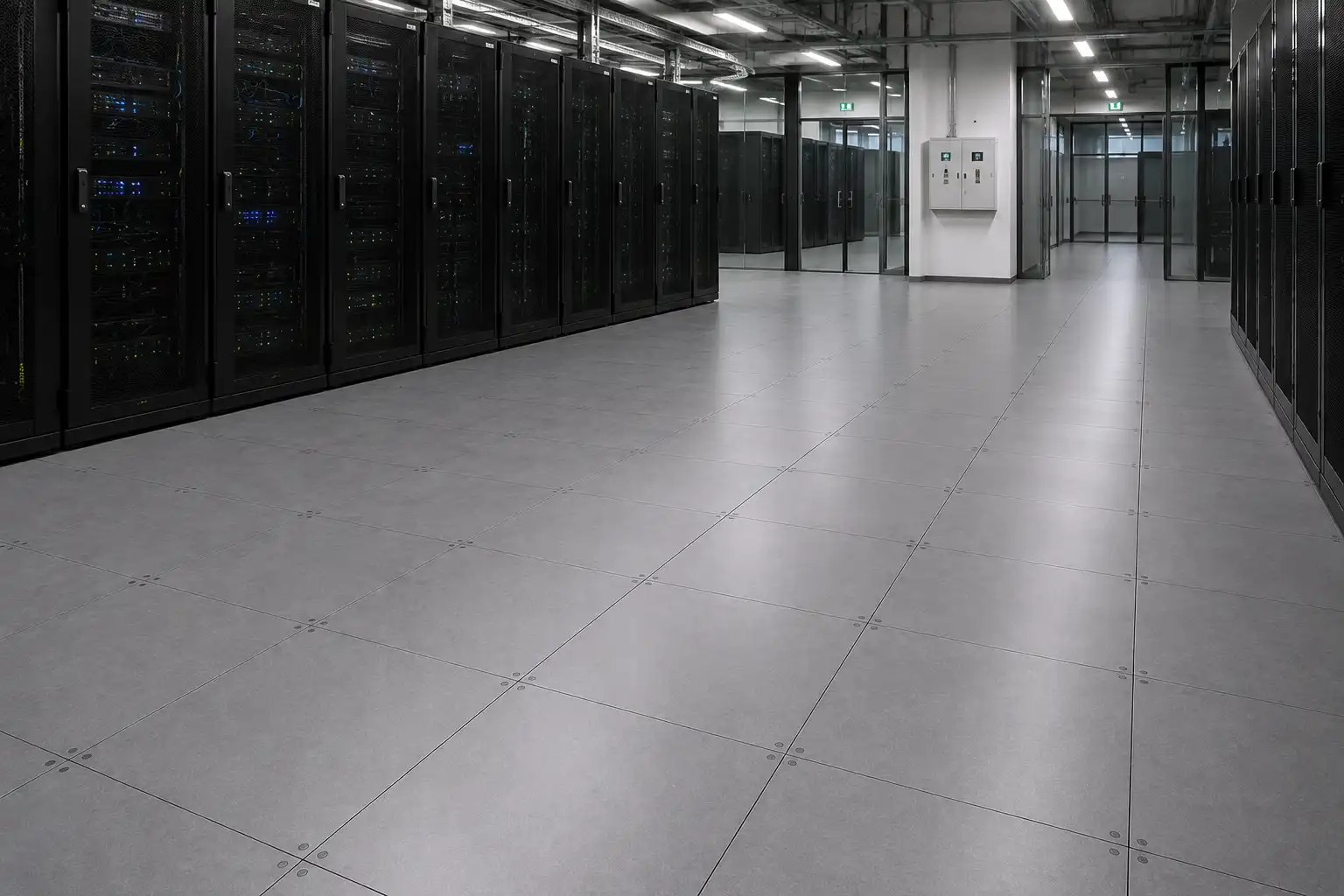

Aplikasi Raised Access Floor

Maxgrid menyediakan berbagai solusi Steel Cementitious Raised Floor untuk kebutuhan ruang teknis dan bangunan, seperti:

Data Center
Computer Room / Server Room
Communication Room
Clean Room
Gedung Perkantoran

Konsultasikan kebutuhan raised floor sesuai project Anda bersama tim kami!

Dapatkan Pemeriksaan Raised Floor Gratis

Jindao HS800H/HS1000H/HS1250H HPL Finished Hollow Steel Access Floor Panel With Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800H	Medium	3	3.6	50	3	12	8
HS1000H	Heavy	4.5	4.5	50	3	20	10
HS1250H	Extra Heavy	5.5	5.5	50	3	30	12

Jindao HS800HN/HS1000HN/HS1250HN HPL Finished Hollow Steel Access Floor Panel Without Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800HN	Medium	3	3.6	50	3	12	8
HS1000HN	Heavy	4.5	4.5	50	3	20	10
HS1250HN	Extra Heavy	5.5	5.5	50	3	30	12

Jindao HS800V/HS1000V/HS1250V Vinyl Finished Hollow Steel Access Floor Panel With Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800V	Medium	3	3.6	50	3	12	8
HS1000V	Heavy	4.5	4.5	50	3	20	10
HS1250V	Extra Heavy	5.5	5.5	50	3	30	12

Jindao HS800VN/HS1000VN/HS1250VN Vinyl Finished Hollow Steel Access Floor Panel Without Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800VN	Medium	3	3.6	50	3	12	8
HS1000VN	Heavy	4.5	4.5	50	3	20	10
HS1250VN	Extra Heavy	5.5	5.5	50	3	30	12

Jindao Rigid Grid System for HPL/Vinyl Finished Hollow Steel Access Floor System--- Pedestal/Stringer
Pedestal No.	Pedestal Height (mm)	Horizontal Load (kG)	Vertical Load (18 kN)	Pedestal Head	Pedestal Tube	Pedestal Base
FS-L-PST80	80 ± 20	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST100	100 ± 20	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST150	150 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST200	200 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST250	250 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST300	300 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST350	350 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST400	400 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST450	450 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST500	500 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST550	550 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST600	600 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST650	650 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST700	700 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST750	750 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST800	800 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST850	850 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST900	900 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST950	950 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1000	1000 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1050	1050 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1100	1100 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1150	1150 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1200	1200 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick

Jindao 500mm OA800A/0A800C/OA1000A/OA1000C Bare Finished OA Floor Panel
Panel Type	Description	Concentrated Load/Deflection (kN/mm)	Ultimate Load (kN)	Standard FFH	Weight (kG/m2)
OA800A	300kG Solid OA Floor Panel	Center of the panel: 5000/2.0 Center of the edge: 5000/2.5	Center of the panel: 15000 Center of the edge: 12000	70~200 mm	36
OA800C	300kG Dual Cutout OA Floor Panel	Center of the panel: 4500/2.0 Center of the edge: 4500/2.5	Center of the panel: 12000 Center of the edge: 10000	70~200 mm	36
OA1000A	500kG Solid OA Floor Panel	Center of the panel: 6000/2.0 Center of the edge: 6000/2.5	Center of the panel: 18000 Center of the edge: 14000	70~200 mm	39.6
OA1000C	500kG Dual Cutout OA Floor Panel	Center of the panel: 5500/2.0 Center of the edge: 5500/2.5	Center of the panel: 15000 Center of the edge: 12000	70~200 mm	39.6
