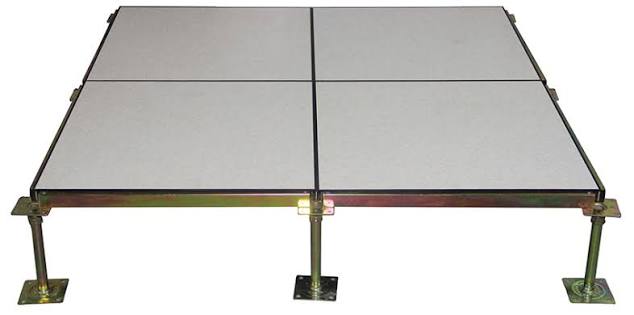

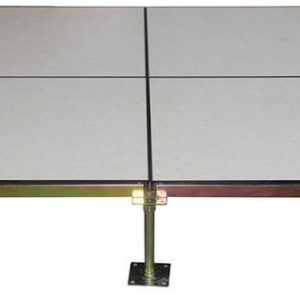

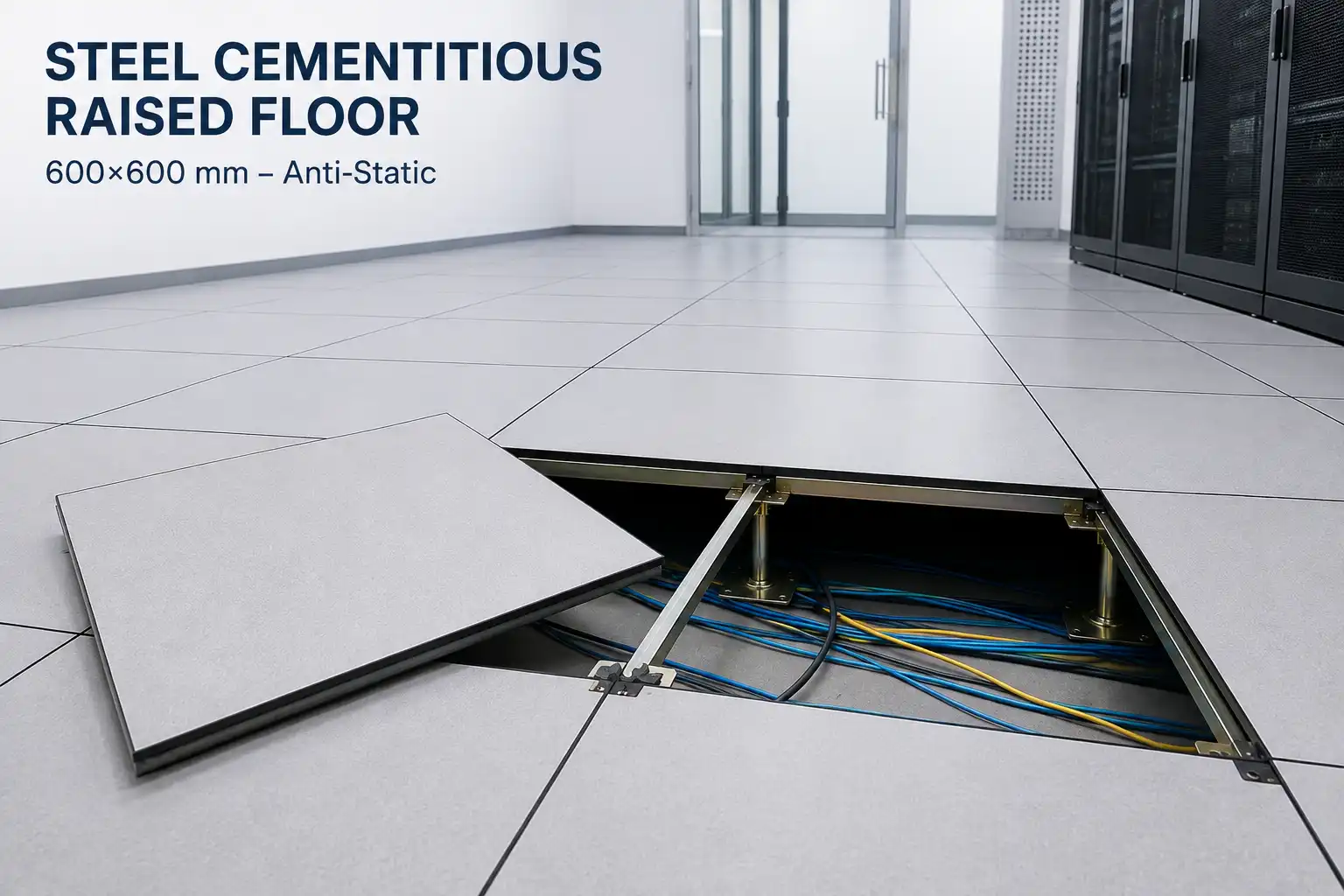

600mm Anti-Static Steel Cementitious Raised Floor

Anti-static HPL steel cementitious raised floor atau raised floor dengan panel 600 × 600mm dan ketebalan 35mm yang dirancang untuk kebutuhan lantai akses dengan kapasitas beban tinggi dan performa anti-statis.

Panel menggunakan konstruksi baja SPCC pada bagian atas dan ST14 pada bagian bawah dengan inti foamed cement, kemudian dilaminasi menggunakan Anti-Static HPL untuk membantu mengontrol listrik statis.

Produk ini merupakan salah satu solusi steel cementitious raised floor dengan panel 600 × 600 mm. Untuk alternatif dengan konstruksi OA 600, lihat OA 600 Patent Steel Cementitious Raised Floor.

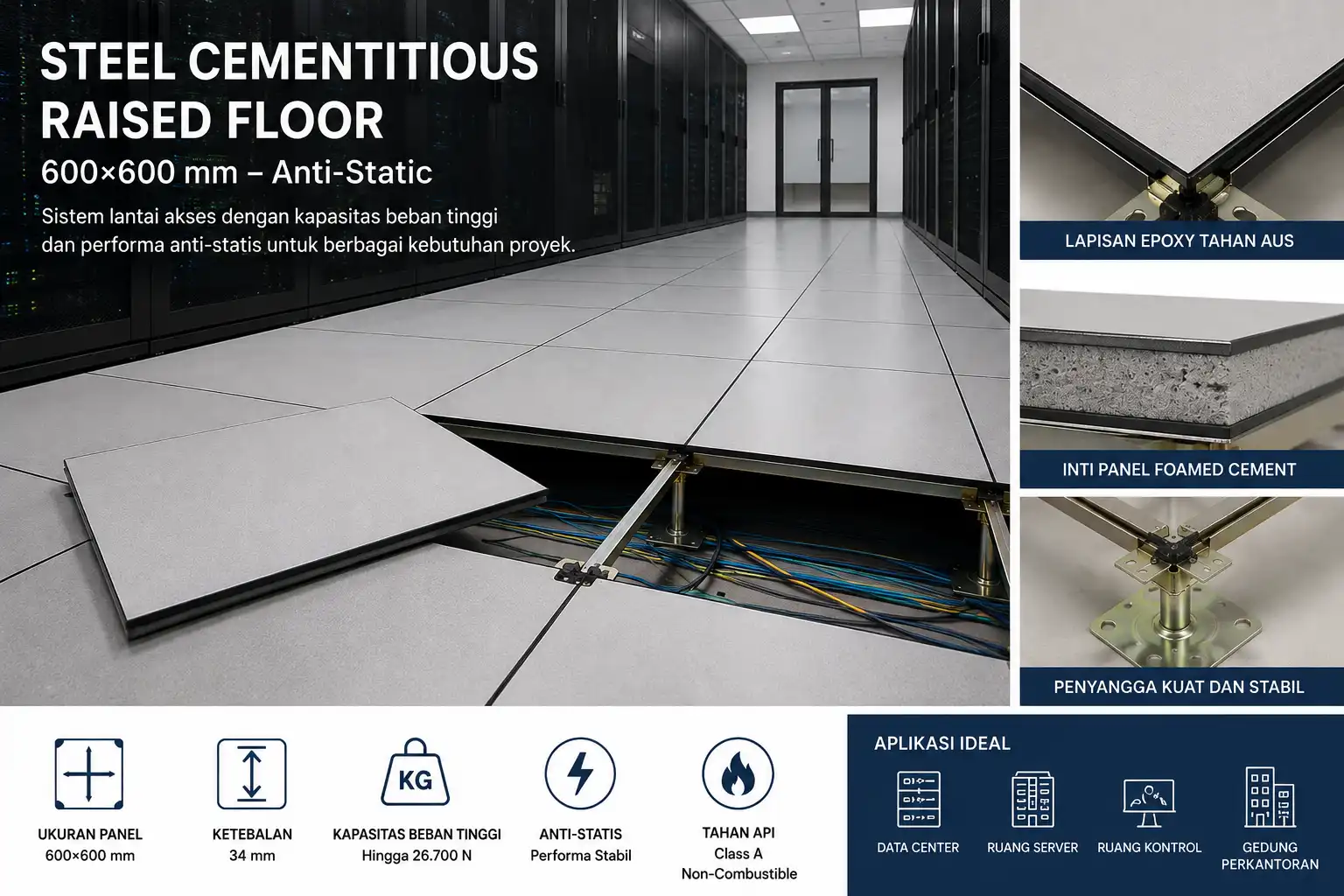

Keunggulan Raised Floor

Kapasitas beban tinggi untuk berbagai kebutuhan proyek
Performa anti-statis untuk membantu mengontrol listrik statis
Konstruksi baja SPCC dan ST14 dengan inti foamed cement
Heavy loading performance
Excellent fire-rate performance
C trim atau trimless edge options

Spesifikasi Raised Floor

Jenis Produk	Anti-Static HPL Steel Access Floor
Ukuran Panel	600 × 600 mm
Ketebalan Panel	35 mm
Pelat Atas	SPCC Hard Rolled Steel
Pelat Bawah	ST14 Steel
Inti Panel	Foamed Cement
Finishing Permukaan	Anti-Static HPL
Edge Trim	C Trim / Trimless
Performa Kebakaran	Incombustible; ASTM E84-01; Flame Spread 0; Smoke Density 0
System Resistance	10⁶–10⁹ Ω; Static Dissipative

Lihat produk dengan kategori yang sama lainnya melalui tautan Steel Cementitious Raised Floor berikut.

Kapasitas Beban Raised Floor

Raised floor panels 600 × 600 mm ini tersedia dalam beberapa tipe dengan kapasitas beban yang berbeda untuk menyesuaikan kebutuhan proyek.

Tipe	Beban Terpusat	Ultimate Load
FS800	364 kg	1.148 kg
FS1000	455 kg	1.363 kg
FS1250	569 kg	1.703 kg
FS1500	682 kg	2.724 kg
FS2000	910 kg	3.177 kg

*Nilai beban mengikuti spesifikasi produk dan konfigurasi sistem raised floor yang digunakan.

Panel Construction

Steel cementitious raised floor ini menggunakan pelat baja SPCC cold-rolled pada bagian atas dan baja ST14 pada bagian bawa.

Struktur panel menggunakan desain reinforcement untuk meningkatkan performa beban dan memiliki dimensi yang presisi untuk mendukung interchangeability antar panel.

Struktur Panel

Kombinasi SPCC steel, foamed cement, dan ST14 steel menghasilkan panel raised floor yang kuat dan stabil untuk penggunaan jangka panjang.

Penguatan Panel

Struktur panel memiliki 64 embedded reinforcement points, vertical and horizontal reinforcing ribs, serta reinforced edges untuk mendukung performa beban.

Surface Finish

Panel menggunakan Anti-Static HPL sebagai finishing permukaan untuk membantu mengontrol listrik statis serta memberikan permukaan yang kuat dan tahan lama.

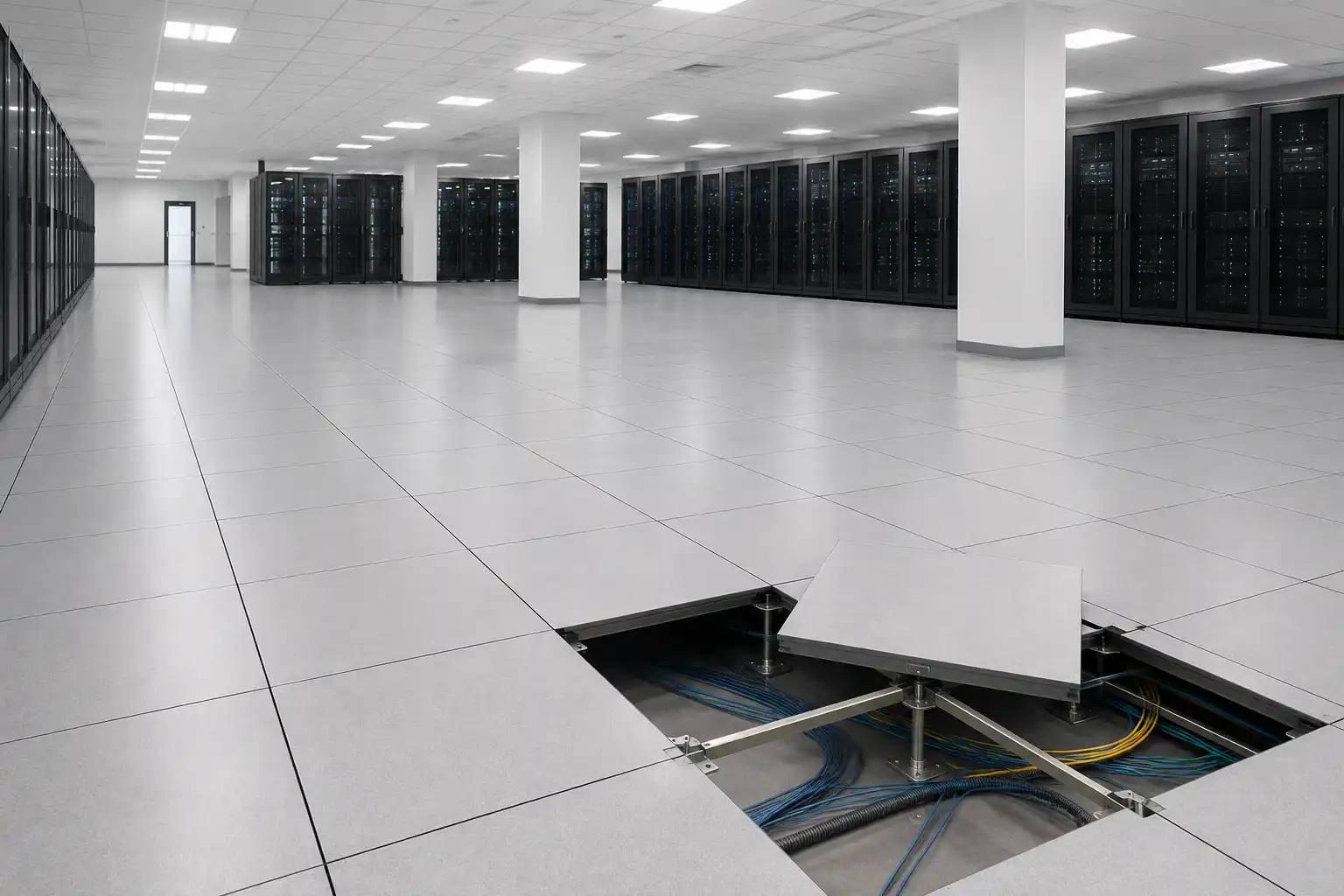

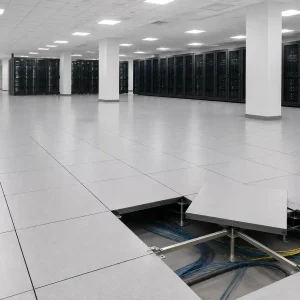

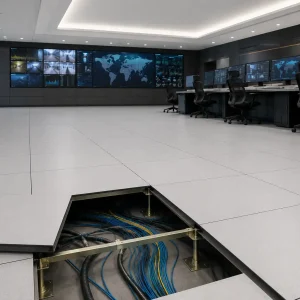

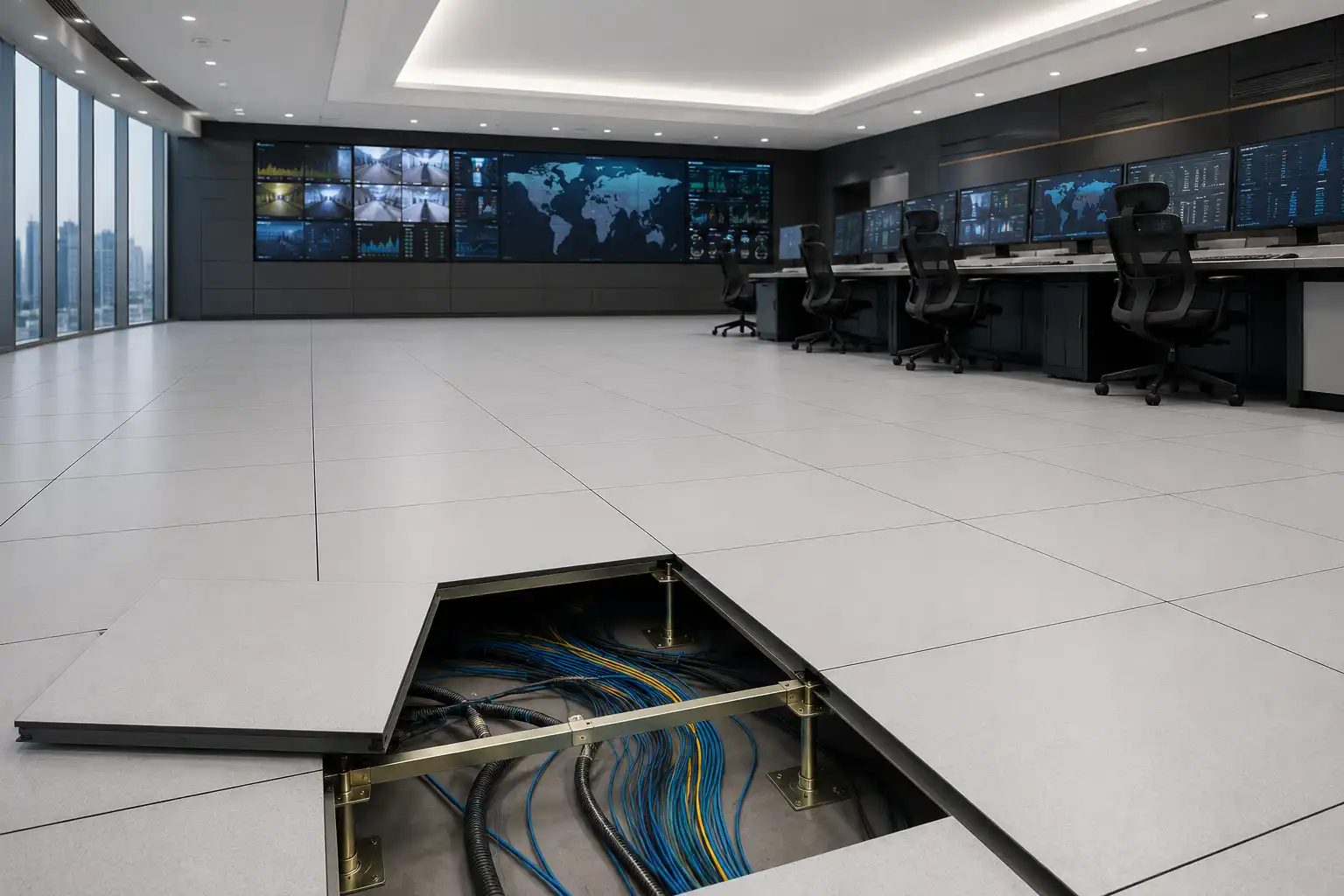

Aplikasi Raised Access Floor

Data Center
Computer Room
Communication Room
Electricity Control Center
Tele-Broadcast Center
Mobile Communication
Satellite Control Center

Untuk kebutuhan panel dengan ukuran 609.6 × 609.6 mm dan karakter anti-static, Anda juga dapat melihat 610mm Anti-static Steel Cementitious Floor.

Konsultasikan kebutuhan raised floor sesuai project Anda bersama tim kami!

Dapatkan Pemeriksaan Raised Floor Gratis

Jindao HS800H/HS1000H/HS1250H HPL Finished Hollow Steel Access Floor Panel With Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800H	Medium	3	3.6	50	3	12	8
HS1000H	Heavy	4.5	4.5	50	3	20	10
HS1250H	Extra Heavy	5.5	5.5	50	3	30	12

Jindao HS800HN/HS1000HN/HS1250HN HPL Finished Hollow Steel Access Floor Panel Without Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800HN	Medium	3	3.6	50	3	12	8
HS1000HN	Heavy	4.5	4.5	50	3	20	10
HS1250HN	Extra Heavy	5.5	5.5	50	3	30	12

Jindao HS800V/HS1000V/HS1250V Vinyl Finished Hollow Steel Access Floor Panel With Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800V	Medium	3	3.6	50	3	12	8
HS1000V	Heavy	4.5	4.5	50	3	20	10
HS1250V	Extra Heavy	5.5	5.5	50	3	30	12

Jindao HS800VN/HS1000VN/HS1250VN Vinyl Finished Hollow Steel Access Floor Panel Without Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800VN	Medium	3	3.6	50	3	12	8
HS1000VN	Heavy	4.5	4.5	50	3	20	10
HS1250VN	Extra Heavy	5.5	5.5	50	3	30	12

Jindao Rigid Grid System for HPL/Vinyl Finished Hollow Steel Access Floor System--- Pedestal/Stringer
Pedestal No.	Pedestal Height (mm)	Horizontal Load (kG)	Vertical Load (18 kN)	Pedestal Head	Pedestal Tube	Pedestal Base
FS-L-PST80	80 ± 20	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST100	100 ± 20	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST150	150 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST200	200 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST250	250 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST300	300 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST350	350 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST400	400 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST450	450 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST500	500 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST550	550 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST600	600 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST650	650 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST700	700 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST750	750 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST800	800 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST850	850 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST900	900 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST950	950 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1000	1000 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1050	1050 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1100	1100 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1150	1150 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1200	1200 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick

Jindao 500mm OA800A/0A800C/OA1000A/OA1000C Bare Finished OA Floor Panel
Panel Type	Description	Concentrated Load/Deflection (kN/mm)	Ultimate Load (kN)	Standard FFH	Weight (kG/m2)
OA800A	300kG Solid OA Floor Panel	Center of the panel: 5000/2.0 Center of the edge: 5000/2.5	Center of the panel: 15000 Center of the edge: 12000	70~200 mm	36
OA800C	300kG Dual Cutout OA Floor Panel	Center of the panel: 4500/2.0 Center of the edge: 4500/2.5	Center of the panel: 12000 Center of the edge: 10000	70~200 mm	36
OA1000A	500kG Solid OA Floor Panel	Center of the panel: 6000/2.0 Center of the edge: 6000/2.5	Center of the panel: 18000 Center of the edge: 14000	70~200 mm	39.6
OA1000C	500kG Dual Cutout OA Floor Panel	Center of the panel: 5500/2.0 Center of the edge: 5500/2.5	Center of the panel: 15000 Center of the edge: 12000	70~200 mm	39.6
