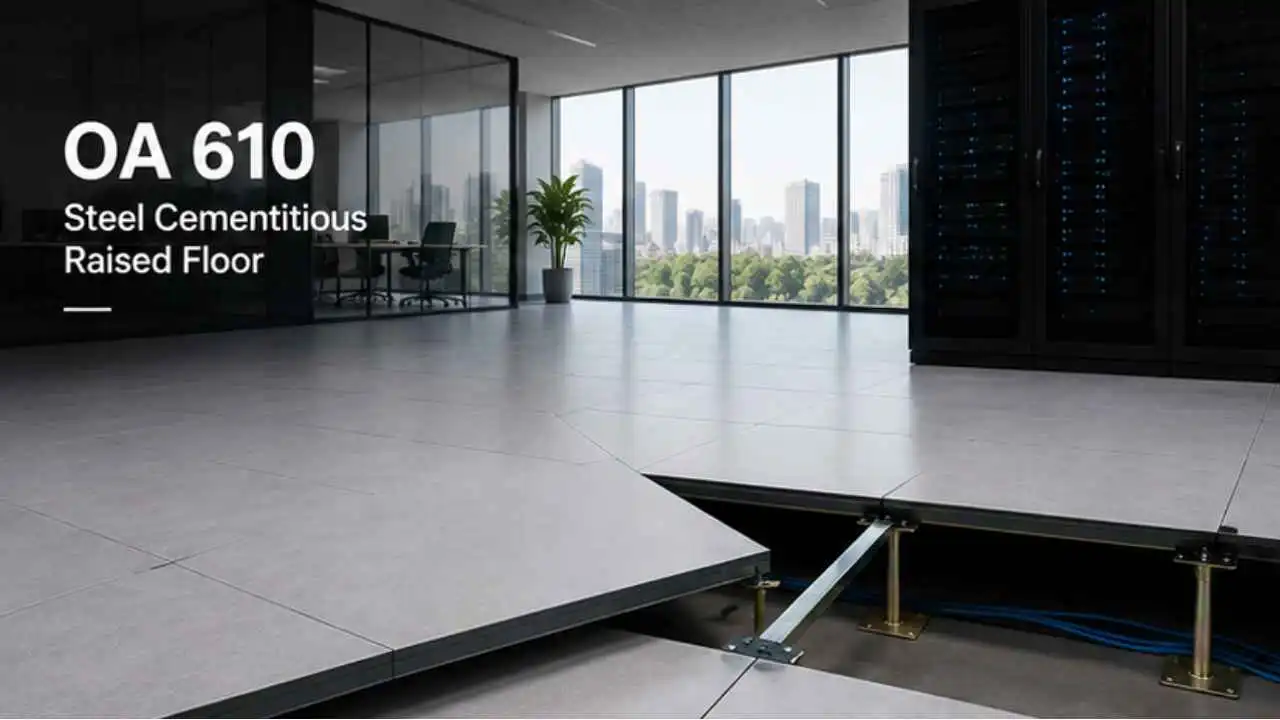

OA 610 Steel Cementitious Raised Floor

Steel cementitious raised floor OA 610 adalah raised floor panel berukuran 609,6 × 609,6 mm dengan konstruksi yang diperkuat untuk mendukung kebutuhan lantai akses dengan beberapa pilihan kapasitas beban.

Produk ini tersedia dalam lima model, yaitu OA613, OA614, OA615, OA616, dan OA619.

Untuk alternatif sistem panel 600 mm dalam kelompok produk yang sama, Anda juga dapat melihat OAS 600 Patent Steel Cementitious Raised Floor.

Keunggulan Raised Floor

Panel 24 inci dengan ukuran 609,6 × 609,6 mm
Tersedia dalam lima pilihan kapasitas beban
Cross reinforced ribs untuk membantu meningkatkan kekuatan panel
Edge reinforced ribs pada sisi panel
Class A dan non-combustible
ASTM E84-01 dengan Flame Spread 0 dan Smoke Density 0

Spesifikasi Raised Floor

Jenis Produk	OA 610 Steel Cementitious Raised Floor
Ukuran Panel	609,6 × 609,6 mm
Ketebalan Panel	34 mm
Model	OA613, OA614, OA615, OA616, OA619
Fire Rating	Class A, Non-Combustible
ASTM E84-01	Flame Spread: 0; Smoke Density: 0

Kapasitas Beban dan Model Raised Floor

OA 610 Steel Cementitious Raised Floor tersedia dalam lima model dengan kapasitas beban berbeda untuk menyesuaikan kebutuhan proyek.

Tipe	Beban Terpusat	Ultimate Load
OA613	3.563 N / 363 kg	11.250 N
OA614	4.454 N / 454 kg	13.470 N
OA615	5.568 N / 567 kg	16.710 N
OA616	6.681 N / 680 kg	20.090 N
OA619	8.909 N / 909 kg	26.700 N

Untuk alternatif raised floor dengan panel 600 × 600 mm dan konstruksi patent steel cementitious, Anda juga dapat melihat OA 600 Patent Steel Cementitious Raised Floor.

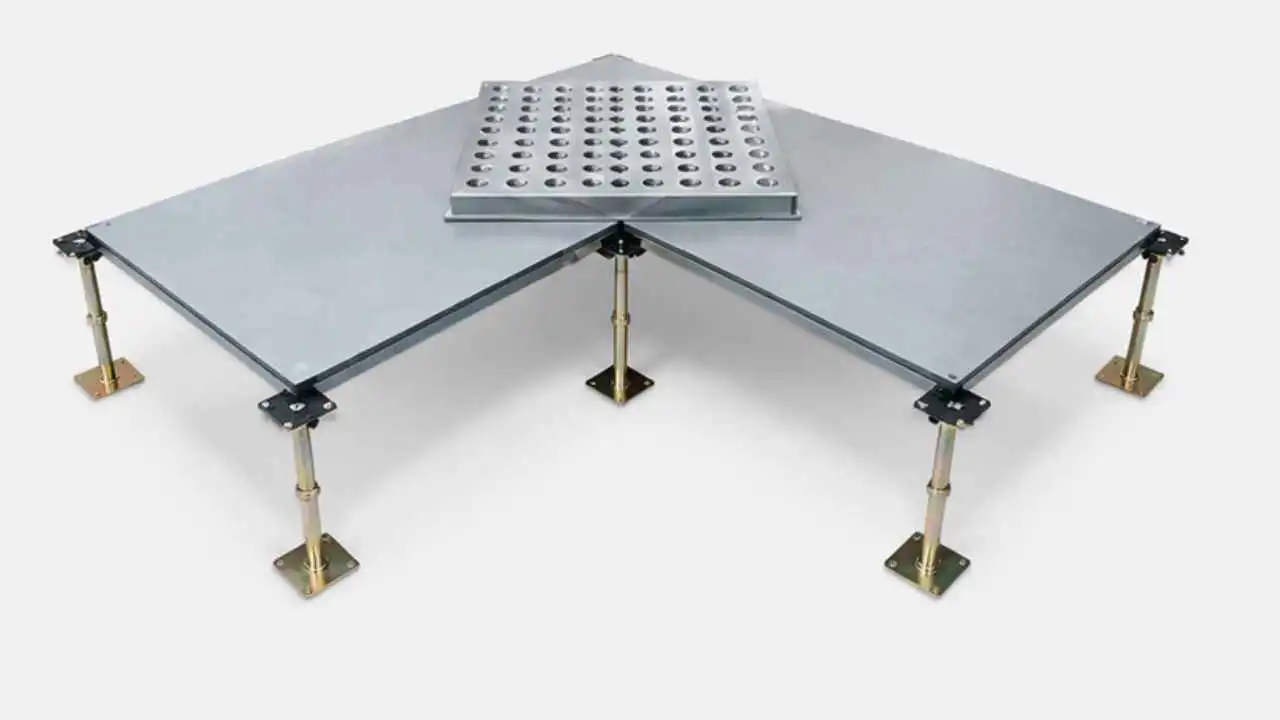

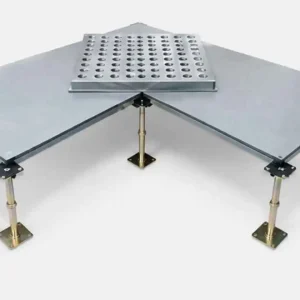

Panel Construction

OA 610 memiliki struktur panel dengan cross reinforced ribs dan edge reinforced ribs yang membantu memperkuat panel dan mendukung performa beban.

Desain panel menggunakan ukuran 609,6 × 609,6 × 34 mm untuk membentuk sistem raised access floor modular yang dapat disesuaikan dengan kebutuhan proyek.

Fire Performance

OA 610 memiliki Class A, non-combustible fire rating. ASTM E84-01 juga mencantumkan Flame Spread 0 dan Smoke Density 0.

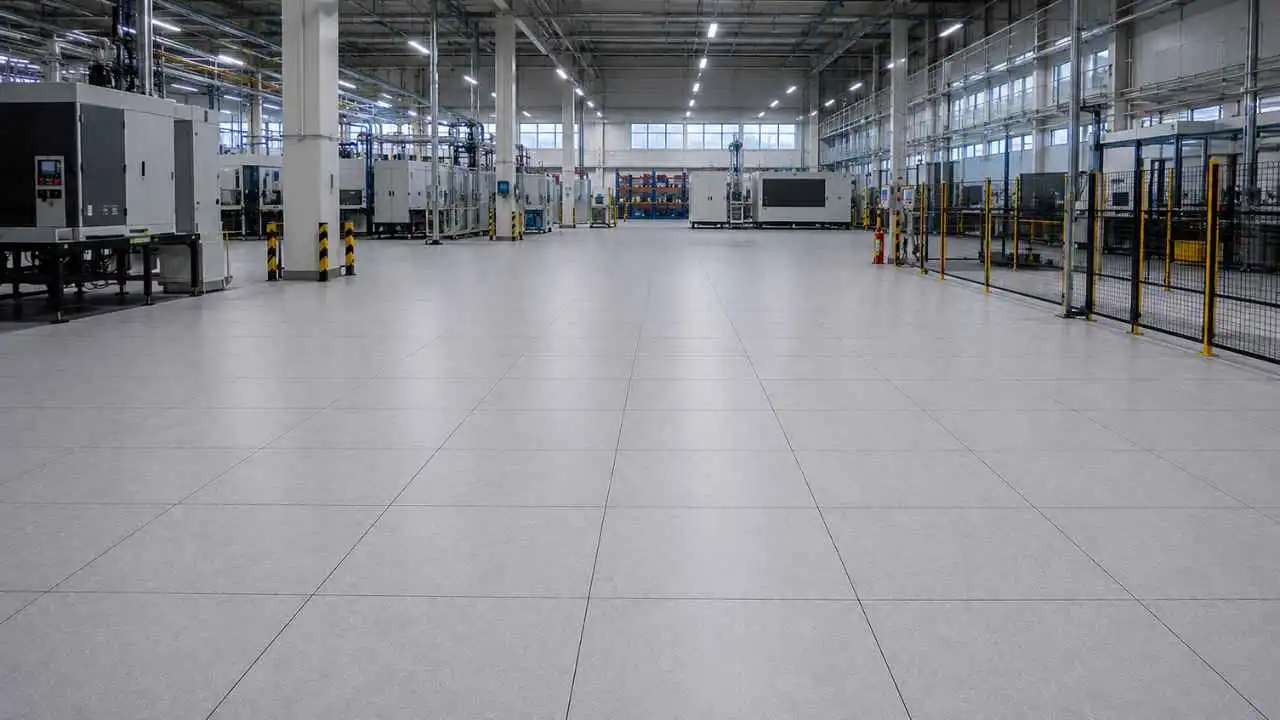

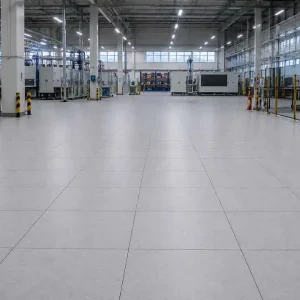

Aplikasi Raised Access Floor

OA610 digunakan pada 5A intelligent building dan gedung perkantoran. Sistem ini juga dapat menjadi solusi untuk kebutuhan renovasi dan rekonstruksi bangunan.

5A Intelligent Building
Gedung Perkantoran
Building Reconstruction

Untuk melihat pilihan lain dalam kelompok Steel Cementitious Floor, Anda dapat melihat produk Maxgrid lainnya yang tersedia.

Konsultasikan kebutuhan raised floor, kondisi lantai, kebutuhan beban, dan spesifikasi proyek Anda bersama tim kami!

Dapatkan Pemeriksaan Raised Floor Gratis

Jindao HS800H/HS1000H/HS1250H HPL Finished Hollow Steel Access Floor Panel With Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800H	Medium	3	3.6	50	3	12	8
HS1000H	Heavy	4.5	4.5	50	3	20	10
HS1250H	Extra Heavy	5.5	5.5	50	3	30	12

Jindao HS800HN/HS1000HN/HS1250HN HPL Finished Hollow Steel Access Floor Panel Without Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800HN	Medium	3	3.6	50	3	12	8
HS1000HN	Heavy	4.5	4.5	50	3	20	10
HS1250HN	Extra Heavy	5.5	5.5	50	3	30	12

Jindao HS800V/HS1000V/HS1250V Vinyl Finished Hollow Steel Access Floor Panel With Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800V	Medium	3	3.6	50	3	12	8
HS1000V	Heavy	4.5	4.5	50	3	20	10
HS1250V	Extra Heavy	5.5	5.5	50	3	30	12

Jindao HS800VN/HS1000VN/HS1250VN Vinyl Finished Hollow Steel Access Floor Panel Without Edge Trim
Panel Type	Panel Grade	Dynamic Load (kN)	Concentrated Load (kN)	Impact Load (kG)	Safety Factor	Uniform Load (kN/m2)	Weight (kG)
HS800VN	Medium	3	3.6	50	3	12	8
HS1000VN	Heavy	4.5	4.5	50	3	20	10
HS1250VN	Extra Heavy	5.5	5.5	50	3	30	12

Jindao Rigid Grid System for HPL/Vinyl Finished Hollow Steel Access Floor System--- Pedestal/Stringer
Pedestal No.	Pedestal Height (mm)	Horizontal Load (kG)	Vertical Load (18 kN)	Pedestal Head	Pedestal Tube	Pedestal Base
FS-L-PST80	80 ± 20	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST100	100 ± 20	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST150	150 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST200	200 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST250	250 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST300	300 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST350	350 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST400	400 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 24mm × 2mm thick	□100mm × 2.5mm thick
FS-L-PST450	450 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST500	500 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST550	550 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST600	600 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST650	650 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST700	700 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST750	750 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST800	800 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□125mm × 4.0mm thick
FS-L-PST850	850 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST900	900 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST950	950 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1000	1000 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1050	1050 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1100	1100 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1150	1150 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick
FS-L-PST1200	1200 ± 25	50	Did not collapse	□85mm x 4mm flat	Ф 31mm × 2.5mm thick	□150mm × 5.0mm thick

Jindao 500mm OA800A/0A800C/OA1000A/OA1000C Bare Finished OA Floor Panel
Panel Type	Description	Concentrated Load/Deflection (kN/mm)	Ultimate Load (kN)	Standard FFH	Weight (kG/m2)
OA800A	300kG Solid OA Floor Panel	Center of the panel: 5000/2.0 Center of the edge: 5000/2.5	Center of the panel: 15000 Center of the edge: 12000	70~200 mm	36
OA800C	300kG Dual Cutout OA Floor Panel	Center of the panel: 4500/2.0 Center of the edge: 4500/2.5	Center of the panel: 12000 Center of the edge: 10000	70~200 mm	36
OA1000A	500kG Solid OA Floor Panel	Center of the panel: 6000/2.0 Center of the edge: 6000/2.5	Center of the panel: 18000 Center of the edge: 14000	70~200 mm	39.6
OA1000C	500kG Dual Cutout OA Floor Panel	Center of the panel: 5500/2.0 Center of the edge: 5500/2.5	Center of the panel: 15000 Center of the edge: 12000	70~200 mm	39.6
