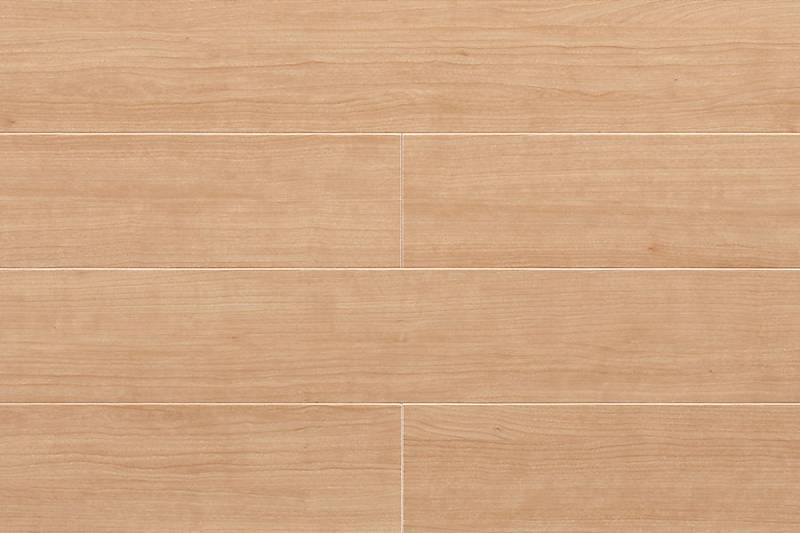

TOLI Vinyl Tile

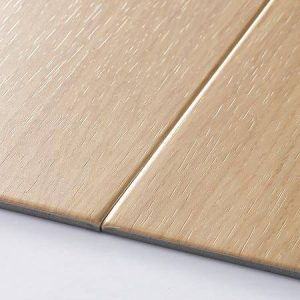

TOLI Vinyl Tile

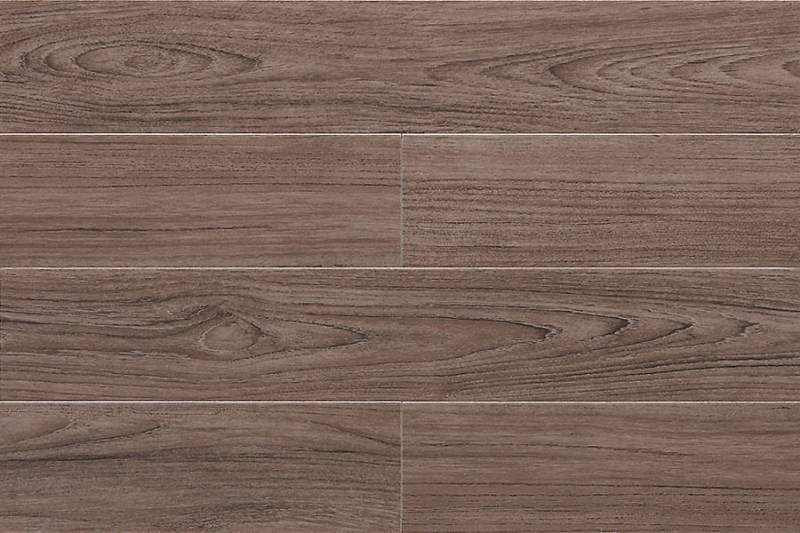

3mm VCT Tile

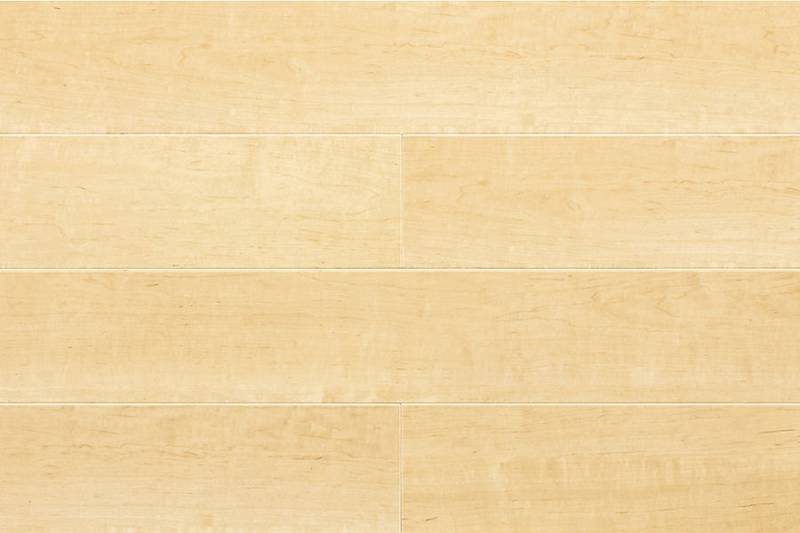

TOLI Vinyl Tile

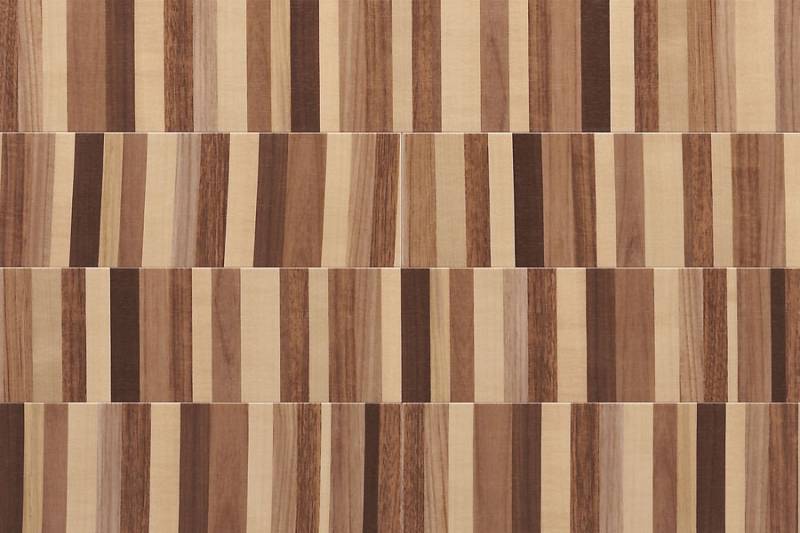

2mm VCT Tile

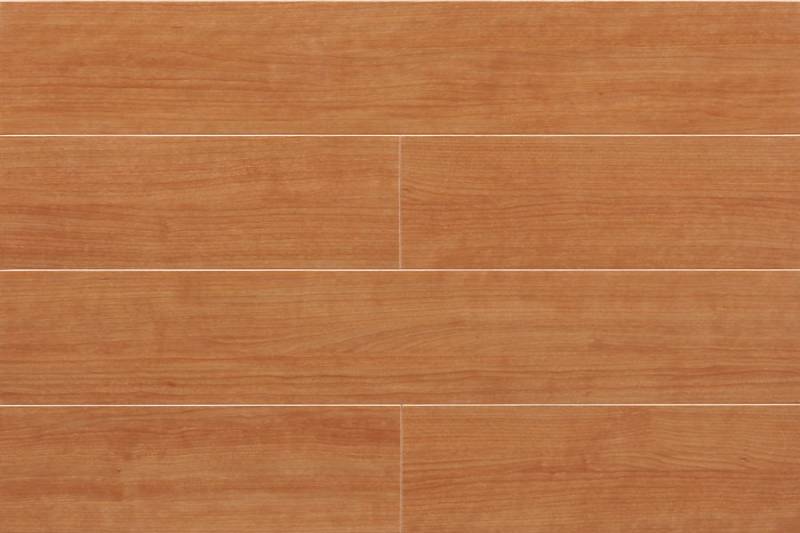

TOLI Vinyl Tile

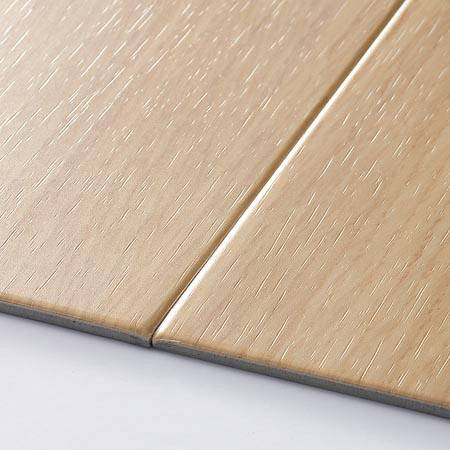

TOLI Vinyl Tile

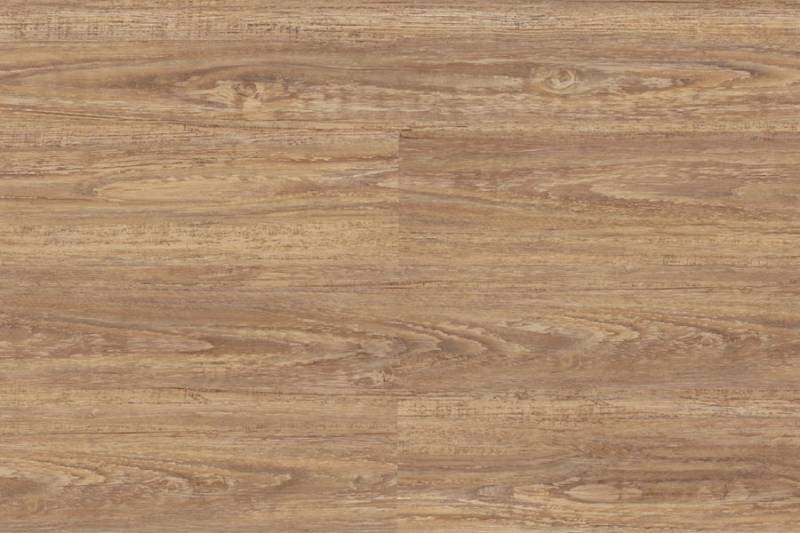

TOLI Vinyl Tile
| Jindao HS800H/HS1000H/HS1250H HPL Finished Hollow Steel Access Floor Panel With Edge Trim | |||||||
| Panel Type | Panel Grade | Dynamic Load (kN) | Concentrated Load (kN) | Impact Load (kG) | Safety Factor | Uniform Load (kN/m2) | Weight (kG) |
| HS800H | Medium | 3 | 3.6 | 50 | 3 | 12 | 8 |
| HS1000H | Heavy | 4.5 | 4.5 | 50 | 3 | 20 | 10 |
| HS1250H | Extra Heavy | 5.5 | 5.5 | 50 | 3 | 30 | 12 |
| Jindao HS800HN/HS1000HN/HS1250HN HPL Finished Hollow Steel Access Floor Panel Without Edge Trim | |||||||
| Panel Type | Panel Grade | Dynamic Load (kN) | Concentrated Load (kN) | Impact Load (kG) | Safety Factor | Uniform Load (kN/m2) | Weight (kG) |
| HS800HN | Medium | 3 | 3.6 | 50 | 3 | 12 | 8 |
| HS1000HN | Heavy | 4.5 | 4.5 | 50 | 3 | 20 | 10 |
| HS1250HN | Extra Heavy | 5.5 | 5.5 | 50 | 3 | 30 | 12 |
| Jindao HS800V/HS1000V/HS1250V Vinyl Finished Hollow Steel Access Floor Panel With Edge Trim | |||||||
| Panel Type | Panel Grade | Dynamic Load (kN) | Concentrated Load (kN) | Impact Load (kG) | Safety Factor | Uniform Load (kN/m2) | Weight (kG) |
| HS800V | Medium | 3 | 3.6 | 50 | 3 | 12 | 8 |
| HS1000V | Heavy | 4.5 | 4.5 | 50 | 3 | 20 | 10 |
| HS1250V | Extra Heavy | 5.5 | 5.5 | 50 | 3 | 30 | 12 |
| Jindao HS800VN/HS1000VN/HS1250VN Vinyl Finished Hollow Steel Access Floor Panel Without Edge Trim | |||||||
| Panel Type | Panel Grade | Dynamic Load (kN) | Concentrated Load (kN) | Impact Load (kG) | Safety Factor | Uniform Load (kN/m2) | Weight (kG) |
| HS800VN | Medium | 3 | 3.6 | 50 | 3 | 12 | 8 |
| HS1000VN | Heavy | 4.5 | 4.5 | 50 | 3 | 20 | 10 |
| HS1250VN | Extra Heavy | 5.5 | 5.5 | 50 | 3 | 30 | 12 |
| Jindao Rigid Grid System for HPL/Vinyl Finished Hollow Steel Access Floor System--- Pedestal/Stringer | ||||||
| Pedestal No. | Pedestal Height (mm) | Horizontal Load (kG) | Vertical Load (18 kN) | Pedestal Head | Pedestal Tube | Pedestal Base |
| FS-L-PST80 | 80 ± 20 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST100 | 100 ± 20 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST150 | 150 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST200 | 200 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST250 | 250 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST300 | 300 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST350 | 350 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST400 | 400 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST450 | 450 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST500 | 500 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST550 | 550 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST600 | 600 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST650 | 650 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST700 | 700 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST750 | 750 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST800 | 800 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST850 | 850 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST900 | 900 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST950 | 950 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1000 | 1000 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1050 | 1050 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1100 | 1100 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1150 | 1150 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1200 | 1200 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| Jindao HS800B/HS1000B/HS1250B Bare Finished Hollow Steel Access Floor Panel | |||||||
| Panel Type | Panel Grade | Dynamic Load (kN) | Concentrated Load (kN) | Impact Load (kG) | Safety Factor | Uniform Load (kN/m2) | Weight (kG) |
| HS800B | Medium | 3 | 3.6 | 50 | 3 | 12 | 8 |
| HS1000B | Heavy | 4.5 | 4.5 | 50 | 3 | 20 | 10 |
| HS1250B | Extra Heavy | 5.5 | 5.5 | 50 | 3 | 30 | 12 |
| Jindao Corner Lock System for Bare Finished Hollow Steel Access Floor System --- Pedestal | ||||||
| Pedestal No. | Pedestal Height (mm) | Horizontal Load (kG) | Vertical Load (18 kN) | Pedestal Head | Pedestal Tube | Pedestal Base |
| FS-B-PST80 | 80 ± 20 | 50 | Did not collapse | □85mm cruciform | Ф 20mm × 2mm thick | □100mm × 2.5mm thick |
| FS-B-PST100 | 100 ± 20 | 50 | Did not collapse | □85mm cruciform | Ф 20mm × 2mm thick | □100mm × 2.5mm thick |
| FS-B-PST150 | 150 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 20mm × 2mm thick | □100mm × 2.5mm thick |
| FS-B-PST200 | 200 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 20mm × 2mm thick | □100mm × 2.5mm thick |
| FS-B-PST250 | 250 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 20mm × 2mm thick | □100mm × 2.5mm thick |
| FS-B-PST300 | 300 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-B-PST350 | 350 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-B-PST400 | 400 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-B-PST450 | 450 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-B-PST500 | 500 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-B-PST550 | 550 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-B-PST600 | 600 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-B-PST650 | 650 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-B-PST700 | 700 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-B-PST750 | 750 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-B-PST800 | 800 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| Jindao Bolted Stringer System for Bare Finished Hollow Steel Access Floor System --- Pedestal/Stringer | ||||||
| Pedestal No. | Pedestal Height (mm) | Horizontal Load (kG) | Vertical Load (18 kN) | Pedestal Head | Pedestal Tube | Pedestal Base |
| FS-L-PST80 | 80 ± 20 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST100 | 100 ± 20 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST150 | 150 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST200 | 200 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST250 | 250 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST300 | 300 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST350 | 350 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST400 | 400 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST450 | 450 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST500 | 500 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST550 | 550 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST600 | 600 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST650 | 650 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST700 | 700 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST750 | 750 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST800 | 800 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST850 | 850 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST900 | 900 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST950 | 950 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1000 | 1000 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1050 | 1050 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1100 | 1100 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1150 | 1150 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1200 | 1200 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
The modular square fibrecore panel consists of following parts:
| Jindao Fibrecore Raised Floor Panel | |||||||
| Panel Type | Panel Grade | Dynamic Load (kN) | Concentrated Load (kN) | Impact Load (kG) | Safety Factor | Uniform Load (kN/m2) | Construction |
| WP1000V | Heavy | 4.5 | 5.5 | 50 | 3 | 20 | vinyl/fibrecore/steel |
| WP1000H | Heavy | 4.5 | 5.5 | 50 | 3 | 20 | hpl/fibrecore/steel |
| WP1000B | Heavy | 4.5 | 5.5 | 50 | 3 | 20 | steel/fibrecore/steel |
| Jindao Rigid Grid System for Fibrecore Raised Floor System --- Pedestal/Stringer | ||||||
| Pedestal No. | Finished Floor Height (mm) | Horizontal Load (kG) | Vertical Load (18 kN) | Pedestal Head | Pedestal Tube | Pedestal Base |
| WP-PST80 | 80 ± 7 | 50 | Did not collapse | Ф95 mm × 3 mm flat | N/A | □100mm × 2.5mm thick |
| WP-PST90 | 90 ± 7 | 50 | Did not collapse | Ф95 mm × 3 mm flat | N/A | □100mm × 2.5mm thick |
| WP-PST100 | 100 ± 12 | 50 | Did not collapse | Ф95 mm × 3 mm flat | N/A | □100mm × 2.5mm thick |
| WP-PST125 | 125 ± 15 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST150 | 150 ± 20 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST200 | 200 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST250 | 250 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST300 | 300 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST350 | 350 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST400 | 400 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST450 | 450 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST500 | 500 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST550 | 550 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST600 | 600 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST650 | 650 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST700 | 700 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST750 | 750 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST800 | 800 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST850 | 850 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST900 | 900 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
The modular square woodcore panel consists of following parts:
| Jindao Woodcore Raised Floor Panel | |||||||
| Panel Type | Panel Grade | Dynamic Load (kN) | Concentrated Load (kN) | Impact Load (kG) | Safety Factor | Uniform Load (kN/m2) | Construction |
| WP1000V | Heavy | 4.5 | 5.5 | 50 | 3 | 20 | vinyl/chipboard/steel |
| WP1000H | Heavy | 4.5 | 5.5 | 50 | 3 | 20 | hpl/chipboard/steel |
| WP1000B | Heavy | 4.5 | 5.5 | 50 | 3 | 20 | steel/chipboard/steel |
| Jindao Rigid Grid System for Woodcore Raised Floor System --- Pedestal/Stringer | ||||||
| Pedestal No. | Finished Floor Height (mm) | Horizontal Load (kG) | Vertical Load (18 kN) | Pedestal Head | Pedestal Tube | Pedestal Base |
| WP-PST80 | 80 ± 7 | 50 | Did not collapse | Ф95 mm × 3 mm flat | N/A | □100mm × 2.5mm thick |
| WP-PST90 | 90 ± 7 | 50 | Did not collapse | Ф95 mm × 3 mm flat | N/A | □100mm × 2.5mm thick |
| WP-PST100 | 100 ± 12 | 50 | Did not collapse | Ф95 mm × 3 mm flat | N/A | □100mm × 2.5mm thick |
| WP-PST125 | 125 ± 15 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST150 | 150 ± 20 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST200 | 200 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST250 | 250 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST300 | 300 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST350 | 350 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST400 | 400 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST450 | 450 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST500 | 500 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST550 | 550 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST600 | 600 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST650 | 650 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST700 | 700 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST750 | 750 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST800 | 800 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST850 | 850 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| WP-PST900 | 900 ± 25 | 50 | Did not collapse | Ф95 mm × 3 mm flat | Ф25mm × 2.5mm thick | □100mm × 2.5mm thick |
| Jindao 500mm OA800A/0A800C/OA1000A/OA1000C Bare Finished OA Floor Panel | |||||
| Panel Type | Description | Concentrated Load/Deflection (kN/mm) | Ultimate Load (kN) | Standard FFH | Weight (kG/m2) |
| OA800A | 300kG Solid OA Floor Panel | Center of the panel: 5000/2.0 Center of the edge: 5000/2.5 | Center of the panel: 15000 Center of the edge: 12000 | 70~200 mm | 36 |
| OA800C | 300kG Dual Cutout OA Floor Panel | Center of the panel: 4500/2.0 Center of the edge: 4500/2.5 | Center of the panel: 12000 Center of the edge: 10000 | 70~200 mm | 36 |
| OA1000A | 500kG Solid OA Floor Panel | Center of the panel: 6000/2.0 Center of the edge: 6000/2.5 | Center of the panel: 18000 Center of the edge: 14000 | 70~200 mm | 39.6 |
| OA1000C | 500kG Dual Cutout OA Floor Panel | Center of the panel: 5500/2.0 Center of the edge: 5500/2.5 | Center of the panel: 15000 Center of the edge: 12000 | 70~200 mm | 39.6 |
| Jindao Corner Lock Pedestal for OA Floor | ||||||
| Pedestal No. | Pedestal Height (mm) | Horizontal Load (kG) | Vertical Load (18 kN) | Pedestal Head | Pedestal Thread Rod | Pedestal Base |
| OA-PST80 | 80 ± 20 | 50 | Did not collapse | Ф80mm cruciform | Ф 16mm thick | □90mm × 3mm thick |
| OA-PST100 | 100 ± 20 | 50 | Did not collapse | Ф80mm cruciform | Ф 16mm thick | □90mm × 3mm thick |
| OA-PST150 | 150 ± 25 | 50 | Did not collapse | Ф80mm cruciform | Ф 16mm thick | □90mm × 3mm thick |
| OA-PST200 | 200 ± 25 | 50 | Did not collapse | Ф80mm cruciform | Ф 16mm thick | □90mm × 3mm thick |
| OA-PST250 | 250 ± 25 | 50 | Did not collapse | Ф80mm cruciform | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| OA-PST300 | 300 ± 25 | 50 | Did not collapse | Ф80mm cruciform | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| OA-PST350 | 350 ± 25 | 50 | Did not collapse | Ф80mm cruciform | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| OA-PST400 | 400 ± 25 | 50 | Did not collapse | Ф80mm cruciform | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| OA-PST450 | 450 ± 25 | 50 | Did not collapse | Ф80mm cruciform | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| OA-PST500 | 500 ± 25 | 50 | Did not collapse | Ф80mm cruciform | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| Jindao FS800H/FS1000H/FS1250H/FS2000H HPL Finished Cementitious Infill Steel Access Floor Panel With Edge Trim | |||||||
| Panel Type | Panel Grade | Dynamic Load (kN) | Concentrated Load (kN) | Impact Load (kG) | Safety Factor | Uniform Load (kN/m2) | Weight (kG) |
| FS800H | Medium | 3 | 3.6 | 50 | 3 | 12 | 14.5 |
| FS1000H | Heavy | 4.5 | 4.5 | 50 | 3 | 20 | 15.5 |
| FS1250H | Extra Heavy | 5.5 | 5.5 | 50 | 3 | 30 | 16.5 |
| Jindao FS800HN/FS1000HN/FS1250HN/FS2000HN HPL Finished Cementitious Infill Steel Access Floor Panel Without Edge Trim | |||||||
| Panel Type | Panel Grade | Dynamic Load (kN) | Concentrated Load (kN) | Impact Load (kG) | Safety Factor | Uniform Load (kN/m2) | Weight (kG) |
| FS800HN | Medium | 3 | 3.6 | 50 | 3 | 12 | 14.5 |
| FS1000HN | Heavy | 4.5 | 4.5 | 50 | 3 | 20 | 15.5 |
| FS1250HN | Extra Heavy | 5.5 | 5.5 | 50 | 3 | 30 | 16.5 |
| Jindao FS800V/FS1000V/FS1250V/FS2000V Vinyl Finished Cementitious Infill Steel Access Floor Panel With Edge Trim | |||||||
| Panel Type | Panel Grade | Dynamic Load (kN) | Concentrated Load (kN) | Impact Load (kG) | Safety Factor | Uniform Load (kN/m2) | Weight (kG) |
| FS800V | Medium | 3 | 3.6 | 50 | 3 | 12 | 15 |
| FS1000V | Heavy | 4.5 | 4.5 | 50 | 3 | 20 | 16 |
| FS1250V | Extra Heavy | 5.5 | 5.5 | 50 | 3 | 30 | 17 |
| Jindao FS800VN/FS1000VN/FS1250VN/FS2000VN Vinyl Finished Cementitious Infill Steel Access Floor Panel Without Edge Trim | |||||||
| Panel Type | Panel Grade | Dynamic Load (kN) | Concentrated Load (kN) | Impact Load (kG) | Safety Factor | Uniform Load (kN/m2) | Weight (kG) |
| FS800VN | Medium | 3 | 3.6 | 50 | 3 | 12 | 15 |
| FS1000VN | Heavy | 4.5 | 4.5 | 50 | 3 | 20 | 16 |
| FS1250VN | Extra Heavy | 5.5 | 5.5 | 50 | 3 | 30 | 17 |
| Jindao Rigid Grid System for HPL/Vinyl Finished Cementitious Infill Steel Access Floor System--- Pedestal/Stringer | ||||||
| Pedestal No. | Pedestal Height (mm) | Horizontal Load (kG) | Vertical Load (18 kN) | Pedestal Head | Pedestal Tube | Pedestal Base |
| FS-L-PST80 | 80 ± 20 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST100 | 100 ± 20 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST150 | 150 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST200 | 200 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST250 | 250 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST300 | 300 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST350 | 350 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST400 | 400 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST450 | 450 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST500 | 500 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST550 | 550 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST600 | 600 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST650 | 650 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST700 | 700 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST750 | 750 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST800 | 800 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST850 | 850 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST900 | 900 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST950 | 950 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1000 | 1000 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1050 | 1050 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1100 | 1100 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1150 | 1150 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1200 | 1200 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| Jindao FS800B/FS1000B/FS1250B/FS2000B Bare Finished Cementitious Infill Steel Access Floor Panel | |||||||
| Panel Type | Panel Grade | Dynamic Load (kN) | Concentrated Load (kN) | Impact Load (kG) | Safety Factor | Uniform Load (kN/m2) | Weight (kG) |
| FS800B | Medium | 3 | 3.6 | 50 | 3 | 12 | 14 |
| FS1000B | Heavy | 4.5 | 4.5 | 50 | 3 | 20 | 15 |
| FS1250B | Extra Heavy | 5.5 | 5.5 | 50 | 3 | 30 | 16 |
| Jindao Corner Lock System for Bare Finished Cementitious Infill Steel Access Floor System --- Pedestal |
||||||
| Pedestal No. | Pedestal Height (mm) | Horizontal Load (kG) | Vertical Load (18 kN) | Pedestal Head | Pedestal Tube | Pedestal Base |
| FS-B-PST80 | 80 ± 20 | 50 | Did not collapse | □85mm cruciform | Ф 20mm × 2mm thick | □100mm × 2.5mm thick |
| FS-B-PST100 | 100 ± 20 | 50 | Did not collapse | □85mm cruciform | Ф 20mm × 2mm thick | □100mm × 2.5mm thick |
| FS-B-PST150 | 150 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 20mm × 2mm thick | □100mm × 2.5mm thick |
| FS-B-PST200 | 200 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 20mm × 2mm thick | □100mm × 2.5mm thick |
| FS-B-PST250 | 250 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 20mm × 2mm thick | □100mm × 2.5mm thick |
| FS-B-PST300 | 300 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-B-PST350 | 350 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-B-PST400 | 400 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-B-PST450 | 450 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-B-PST500 | 500 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-B-PST550 | 550 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-B-PST600 | 600 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-B-PST650 | 650 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-B-PST700 | 700 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-B-PST750 | 750 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-B-PST800 | 800 ± 25 | 50 | Did not collapse | □85mm cruciform | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| Jindao Corner Lock System for Bare Finished Cementitious Infill Steel Access Floor System --- Pedestal |
||||||
| Pedestal No. | Pedestal Height (mm) | Horizontal Load (kG) | Vertical Load (18 kN) | Pedestal Head | Pedestal Tube | Pedestal Base |
| FS-L-PST80 | 80 ± 20 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST100 | 100 ± 20 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST150 | 150 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST200 | 200 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST250 | 250 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST300 | 300 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST350 | 350 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST400 | 400 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 24mm × 2mm thick | □100mm × 2.5mm thick |
| FS-L-PST450 | 450 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST500 | 500 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST550 | 550 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST600 | 600 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST650 | 650 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST700 | 700 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST750 | 750 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST800 | 800 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □125mm × 4.0mm thick |
| FS-L-PST850 | 850 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST900 | 900 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST950 | 950 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1000 | 1000 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1050 | 1050 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1100 | 1100 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1150 | 1150 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
| FS-L-PST1200 | 1200 ± 25 | 50 | Did not collapse | □85mm x 4mm flat | Ф 31mm × 2.5mm thick | □150mm × 5.0mm thick |
